Passenger Side Climate Controlled Seat Cushion Module Connector (C3328)

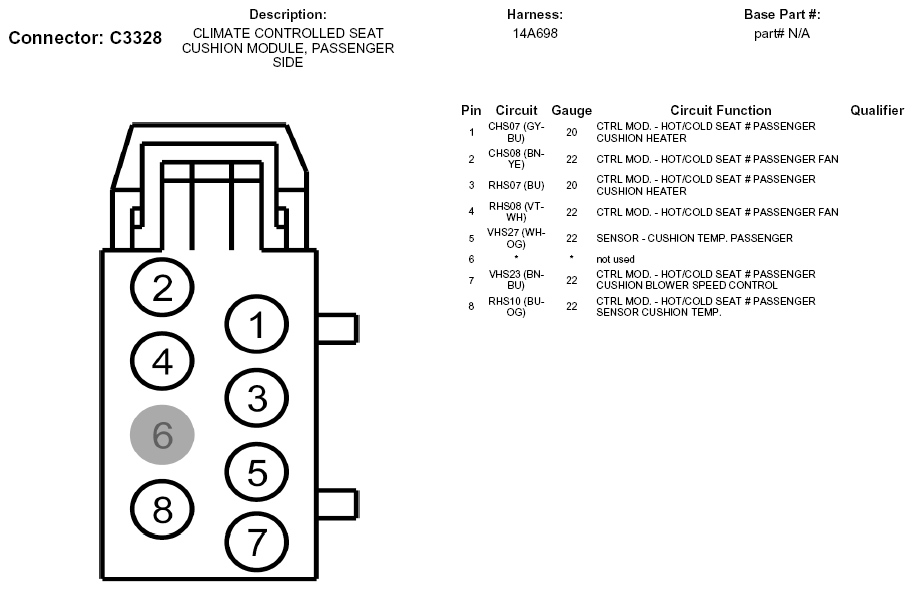

Fig 1: Passenger Side Climate Controlled Seat Cushion Module Connector End View (C3328)

G05747170

Courtesy of FORD MOTOR CO.
