Driver Safety Canopy Module Connector(C9018)

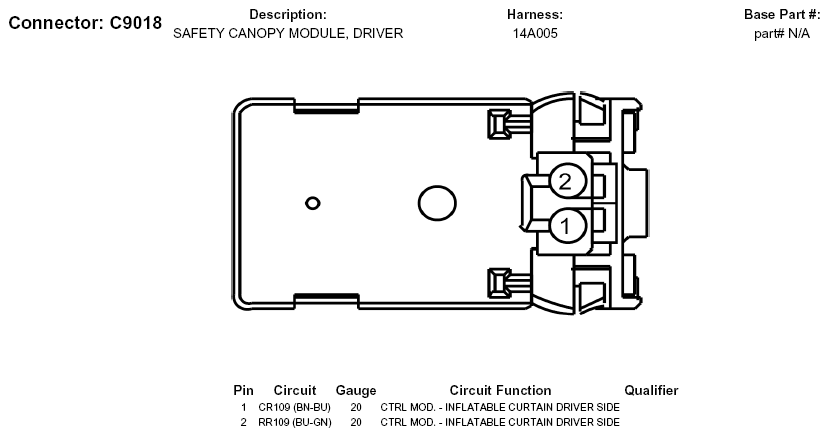

Fig 1: Driver Safety Canopy Module Connector End View (C9018)

G05747221

Courtesy of FORD MOTOR CO.
