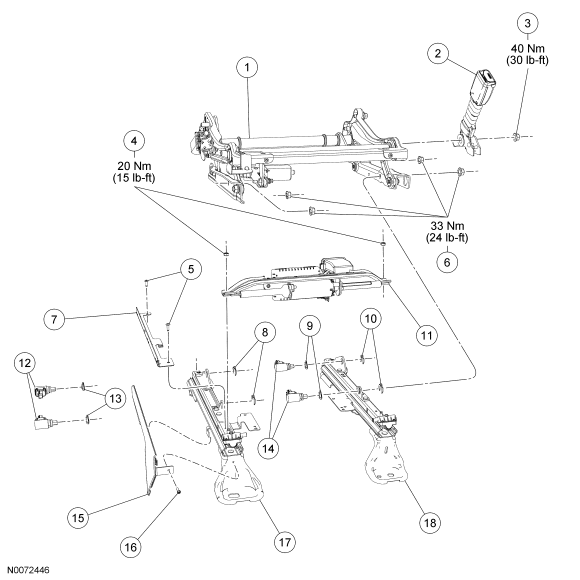

| 1 |
61710 |
Power seat track assembly |
| 2 |
61202 |
Safety belt buckle |
| 3 |
- |
Safety belt buckle nut (part of 61202) |
| 4 |
- |
Seat track front cross brace nuts (2 required) (part of 61710) |
| 5 |
- |
Occupant classification sensor (OCS) weight sensor bolt protection bracket screws (2 required) (part of 61710) |
| 6 |
- |
OCS weight sensor bolt nuts (4 required) (part of 61710) |
| 7 |
- |
OCS weight sensor bolt protection bracket (part of 61710) |
| 8 |
- |
Outboard seat track rail OCS weight sensor bolt retaining clips (2 required) (part of 61710) |
| 9 |
- |
Inboard seat track rail OCS weight sensor bolt spring washers (2 required) (part of 61710) |
| 10 |
- |
Inboard seat track rail OCS weight sensor bolt retaining clips (2 required) (part of 61710) |
| 11 |
- |
Seat track front cross brace (part of 61710) |
| 12 |
- |
Outboard seat track rail OCS weight sensor bolts (2 required) (part of 61710) |
| 13 |
- |
Outboard seat track rail OCS weight sensor bolt spring washers (2 required) (part of 61710) |
| 14 |
- |
Inboard seat track rail OCS weight sensor bolts (2 required) (part of 61710) |
| 15 |
- |
Outboard seat track riser cover shield (part of 61710) |
| 16 |
- |
Outboard seat track riser cover shield retainer (part of 61710) |
| 17 |
- |
Outboard seat track rail (part of 61710) |
| 18 |
- |
Inboard seat track rail (part of 61710) |
