Stability Control Sensor Cluster Connector (C3037)

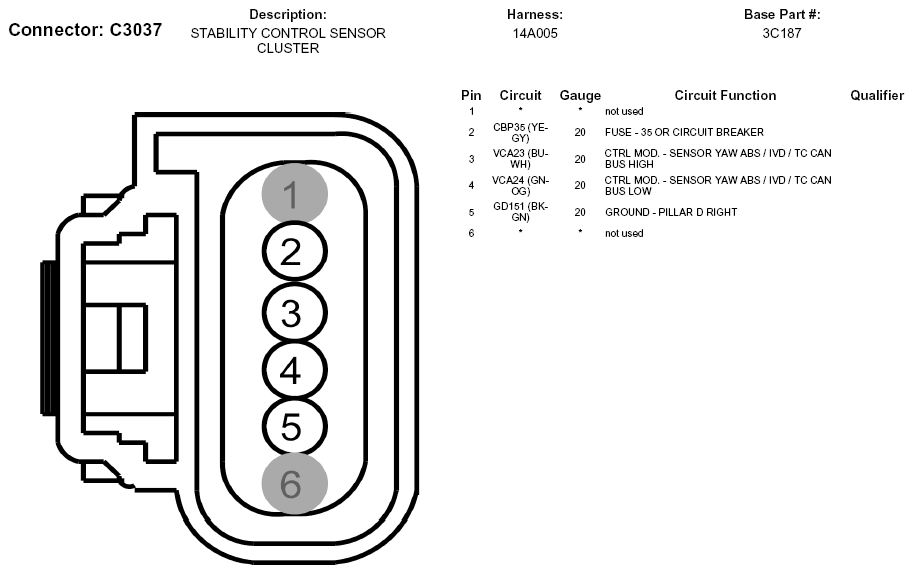

Fig 1: Stability Control Sensor Cluster Connector End View (C3037)

G05747133

Courtesy of FORD MOTOR CO.
