Multifunction Switch Connectors (C202)

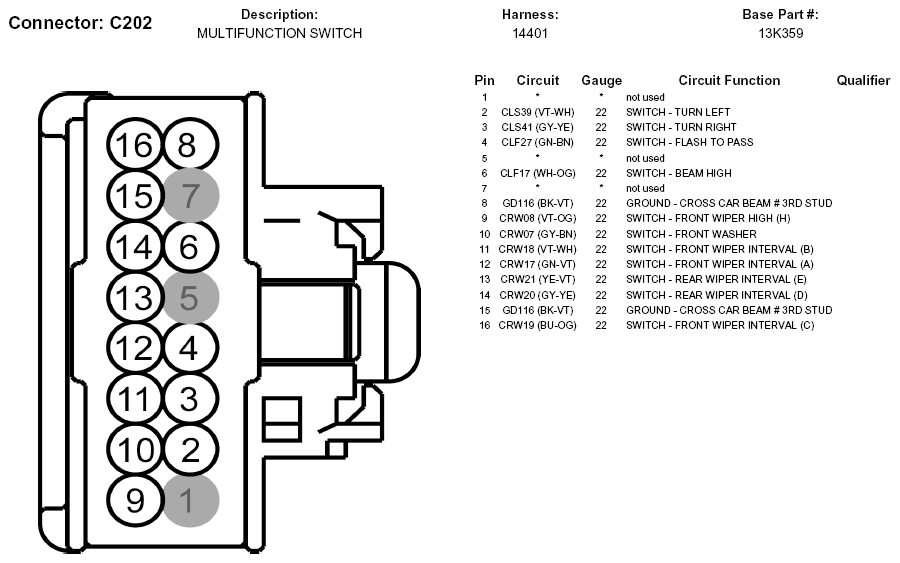

Fig 1: Multifunction Switch Connector End View (C202)

G05746927

Courtesy of FORD MOTOR CO.
