Data Link Connector (C251)
Data Link Connector (C251)

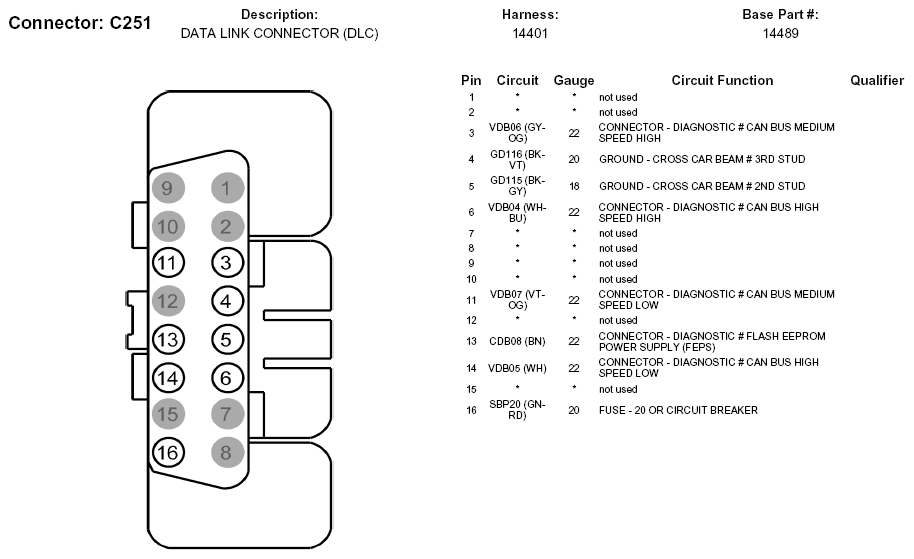

Fig 1: Data Link Connector End View (C251)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
