Ambient Lighting Module Connector (C3347)

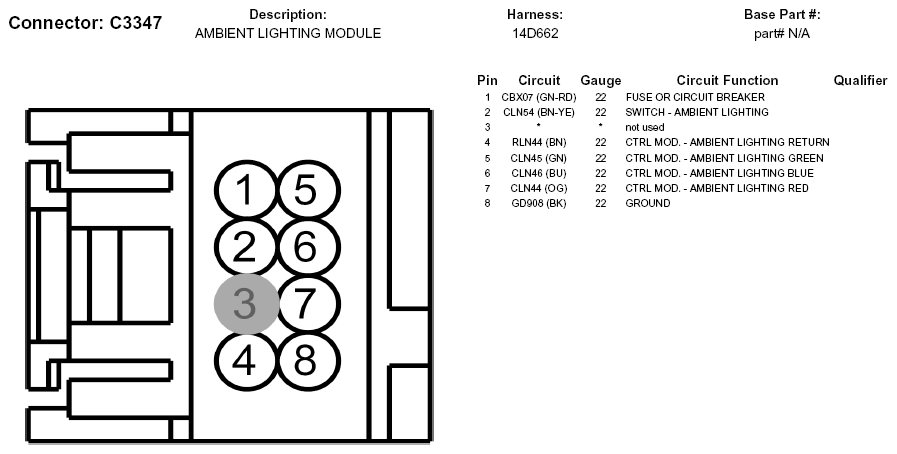

Fig 1: Ambient Lighting Module Connector End View (C3347)

G05747178

Courtesy of FORD MOTOR CO.
