Steering Gear: Material
WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) | MERCON® V |

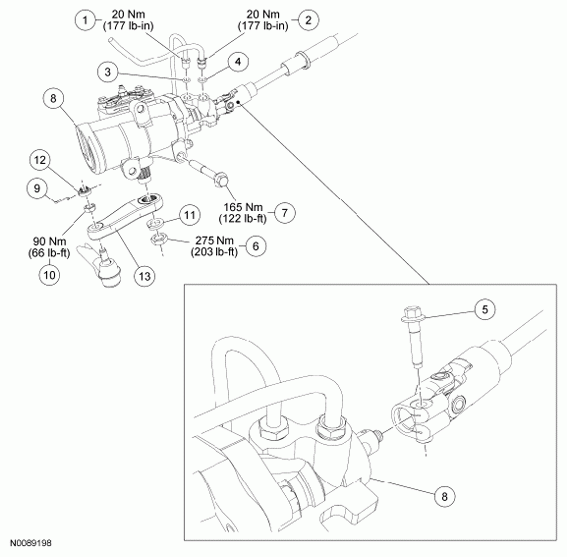

PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-steering gear fitting (part of 3A719) |
| 2 | - | Return line fitting (part of 3A713) |
| 3 | N811029 | O-ring seal |
| 4 | N811028 | O-ring seal |
| 5 | N808684 | Steering column shaft bolt (all except commercial chassis) |
| 5 | N803942 | Steering column shaft bolt (commercial chassis) |
| 6 | 380771 | Sector shaft arm nut |
| 7 | W713478 | Steering gear bolt (3 required) |
| 8 | 3504 | Steering gear |
| 9 | N642569 | Cotter pin |
| 10 | 3N807 | Drag link-to-sector shaft arm nut |
| 11 | 34798 | Sector shaft arm lock washer |
| 12 | W711374 | Nut retainer |
| 13 | 3590 | Sector shaft arm |
