Power Steering Pump: Material
WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) | MERCON® V |
NOTE:

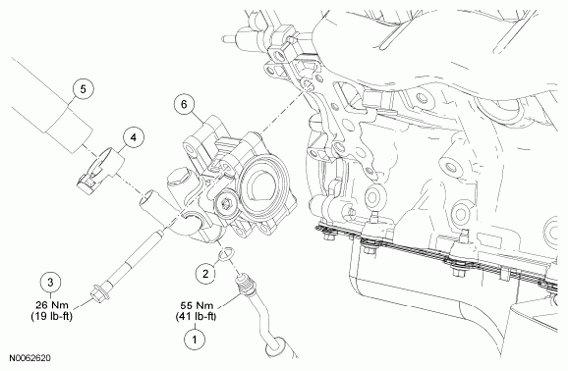

Gas engine shown in illustration, diesel engine similar.
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 3A719 | Pressure line-to-pump fitting |
| 2 | 388898 | Teflon® seal |
| 3 | N806176 | Power steering pump bolt (4.6L, 5.4L, 6.8L) (3 required) |
| 3 | N806176 | Power steering pump bolt (6.0L) (4 required) |
| 4 | 3C750 | Clamp |
| 5 | 3691 | Power steering pump supply hose |
| 6 | 3A674 | Power steering pump |
