Audio Amplifier: Notes

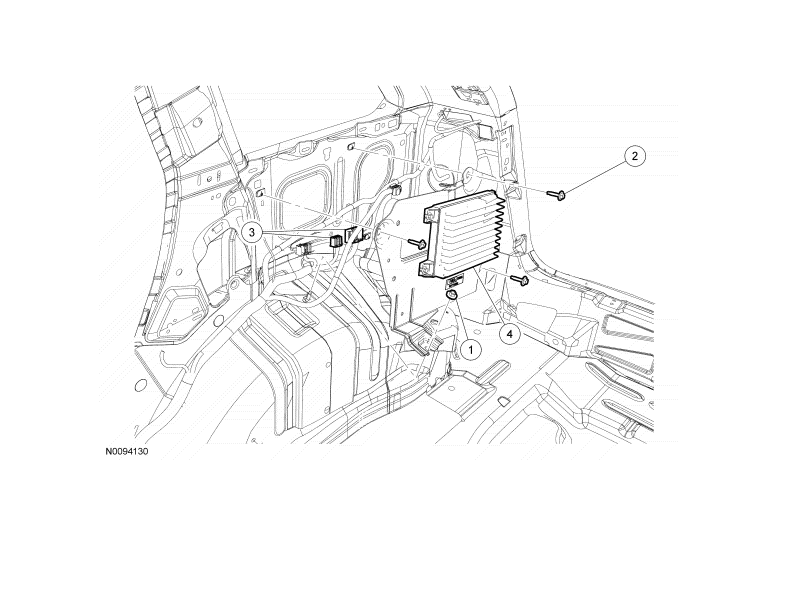

Item Part Number Description
1 N811309-S Audio amplifier nut
2 W505425-S Audio amplifier screws (3 required)
3 - Audio amplifier electrical connectors (part of 14A005)
4 18AB849 Audio amplifier
Fig 1: Identifying Tabs On Audio Input Jack
G00468743Courtesy of FORD MOTOR CO.
