Memory Set Switch Connector (C503)
Memory Set Switch Connector (C503)

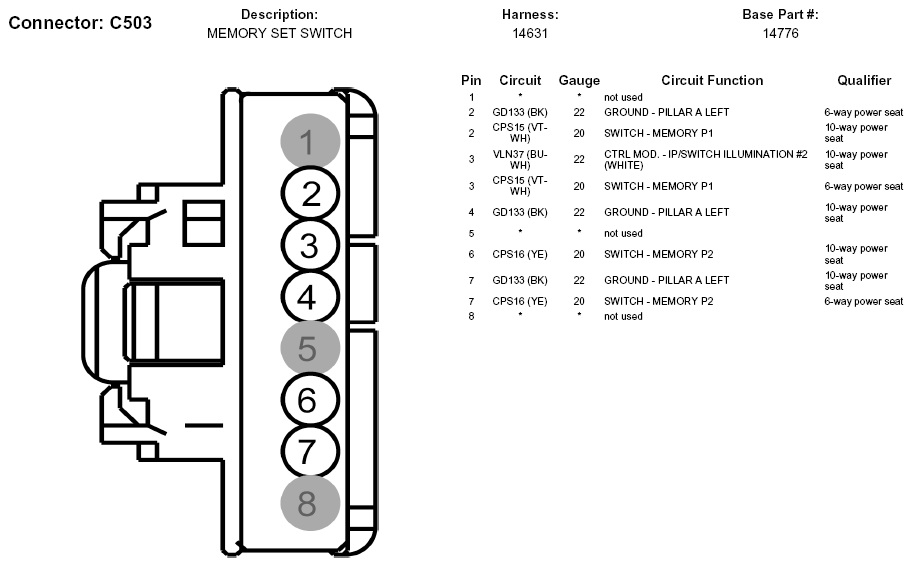

Fig 1: Memory Set Switch Connector End View (C503)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
