Anti-Lock Brake System Module Connector (C135)

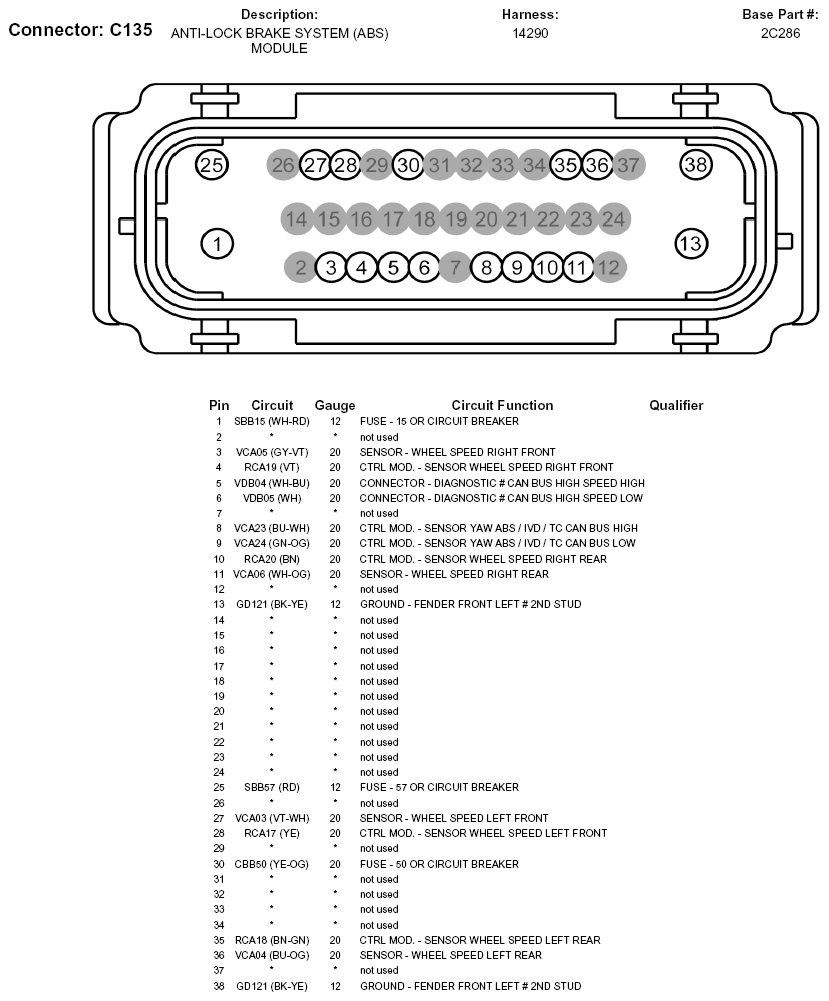

Fig 1: Anti-Lock Brake System Module Connector End View (C135)

G05746896

Courtesy of FORD MOTOR CO.
