Accessory Protocol Interface Module Connector (C3342)

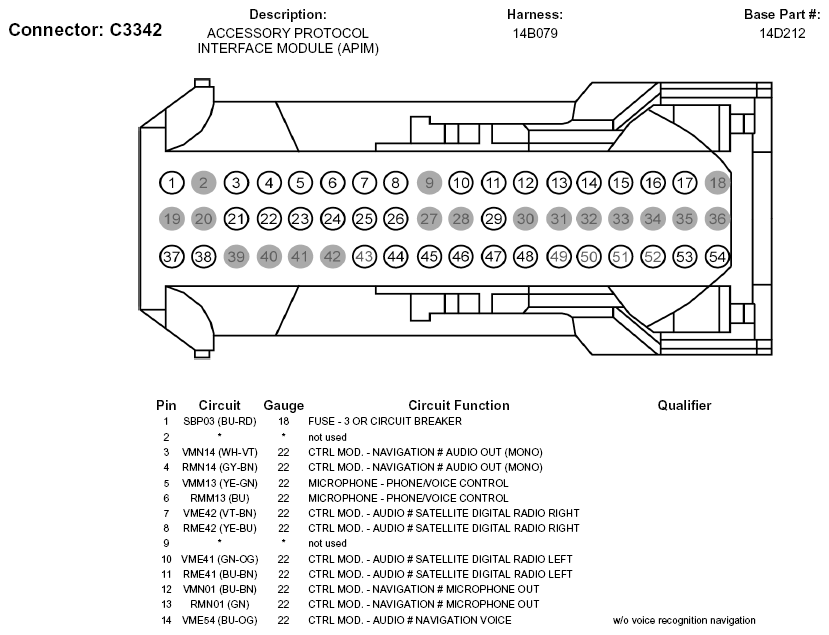

Fig 1: Accessory Protocol Interface Module Connector End View (C3342) (1 Of 2)
G05747176Courtesy of FORD MOTOR CO.

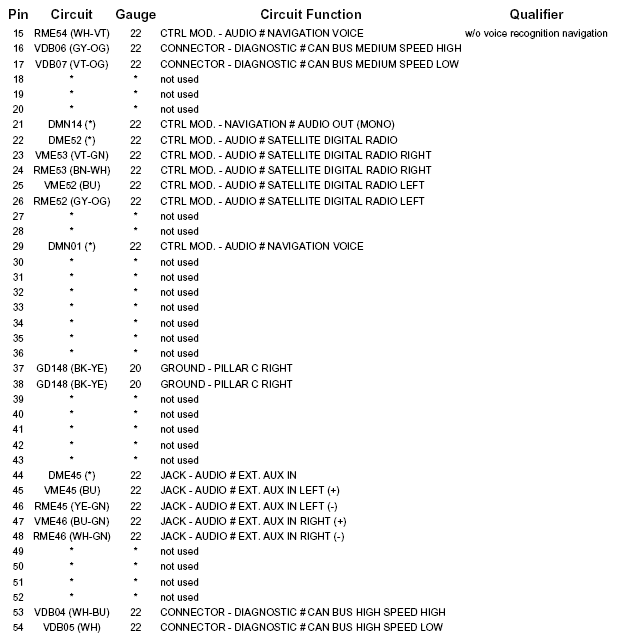

Fig 2: Accessory Protocol Interface Module Connector End View (C3342) (2 Of 2)
G05747177Courtesy of FORD MOTOR CO.
