Master window adjust switch - Edge: Schematic

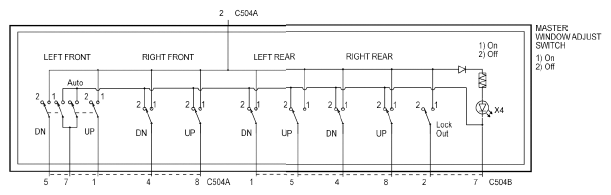

Fig 1: Master Window Adjust Switch - Edge - Schematic

G05753121

Courtesy of FORD MOTOR CO.
