Washer Fluid Level Switch Connector (C138)

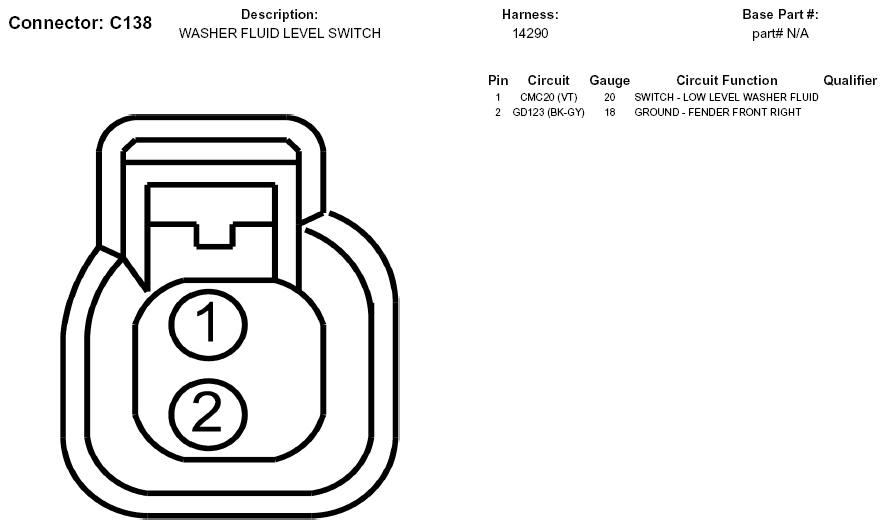

Fig 1: Washer Fluid Level Switch Connector End View (C138)

G05746898

Courtesy of FORD MOTOR CO.
