Right Front Impact Severity Sensor Connector (C1466)

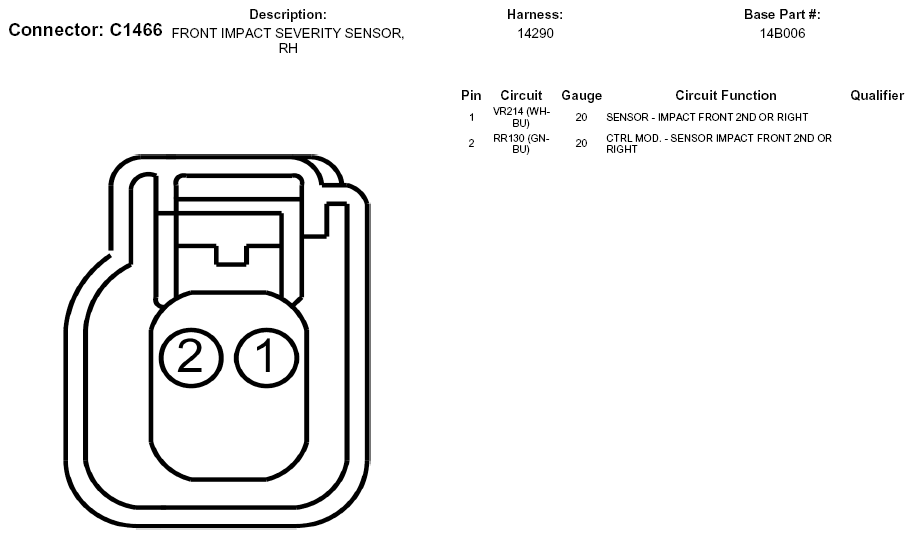

Fig 1: Right Front Impact Severity Sensor Connector End View (C1466)

G05747093

Courtesy of FORD MOTOR CO.
