Passive Anti-Theft Transceiver Connector (C252)

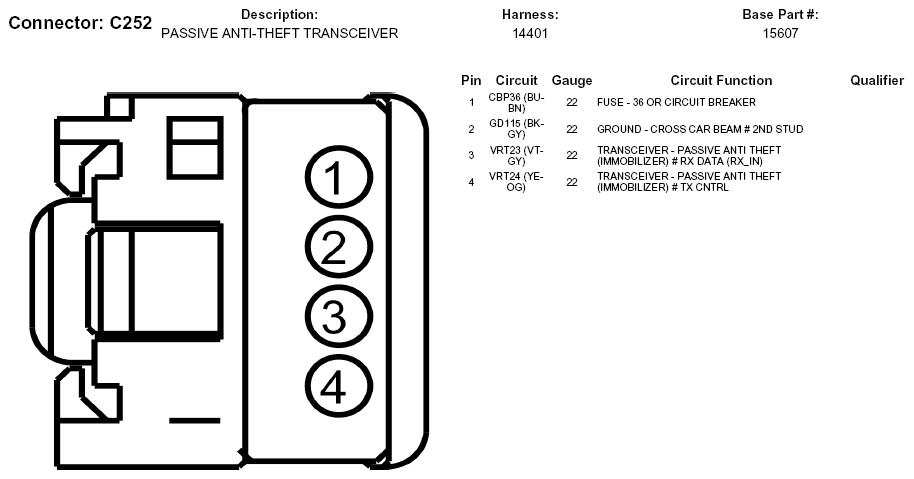

Fig 1: Passive Anti-Theft Transceiver Connector End View (C252)

G05746952

Courtesy of FORD MOTOR CO.
