Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector (C4339)
Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector (C4339)

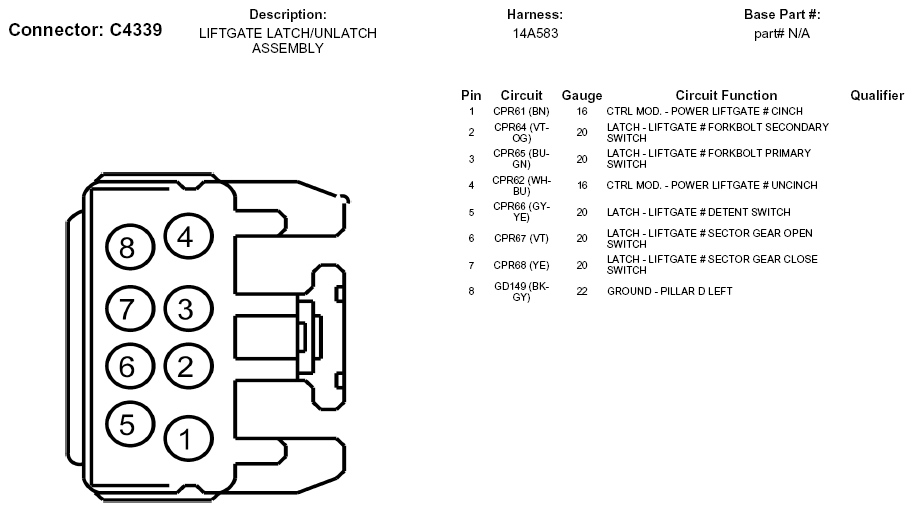

Fig 1: Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector End View (C4339)
Courtesy of FORD MOTOR CO.
