Left Rear Window Adjust Switch Connector (C701)

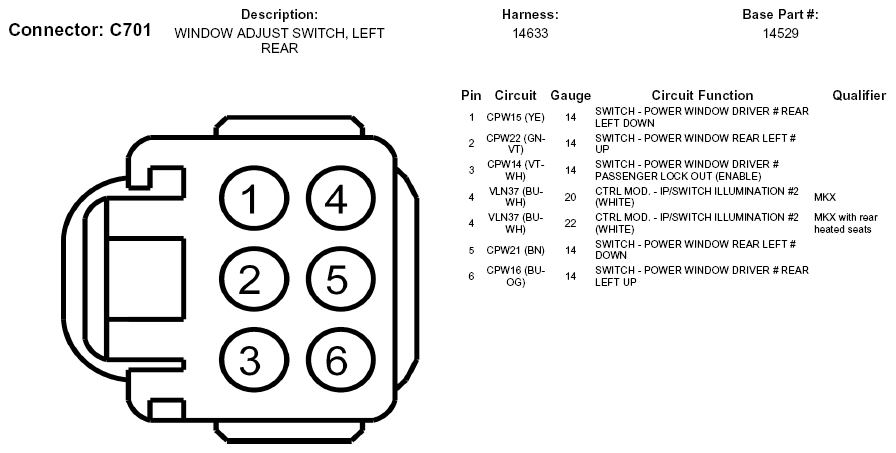

Fig 1: Left Rear Window Adjust Switch Connector End View (C701)

G05747046

Courtesy of FORD MOTOR CO.
