Left Front Seat Track Position Sensor Connector (C356)
Left Front Seat Track Position Sensor Connector (C356)

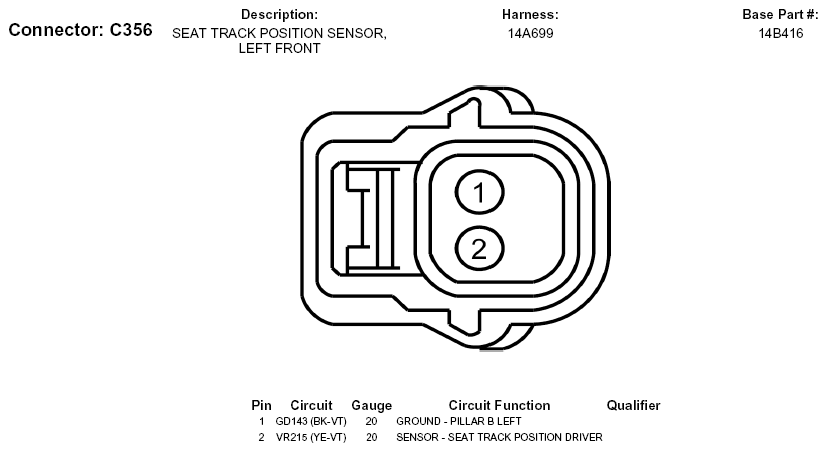

Fig 1: Left Front Seat Track Position Sensor Connector End View (C356)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
