Instrument Panel Power Point Connector (C2033)

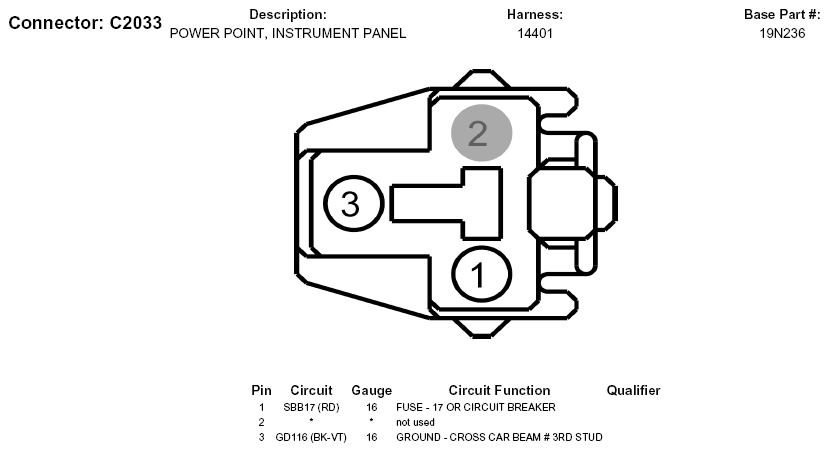

Fig 1: Instrument Panel Power Point Connector End View (C2033)

G05747097

Courtesy of FORD MOTOR CO.
