In-Vehicle Temperature Sensor Connector (C233)
In-Vehicle Temperature Sensor Connector (C233)

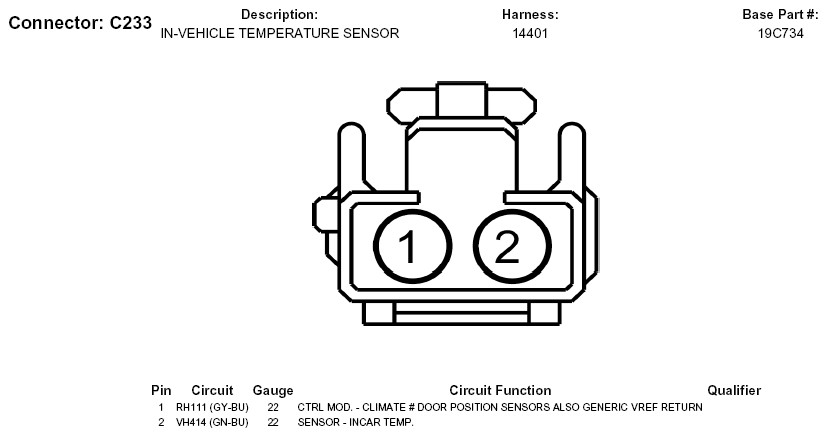

Fig 1: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.
