Fuel Tank Pressure Sensor Connector (C435)

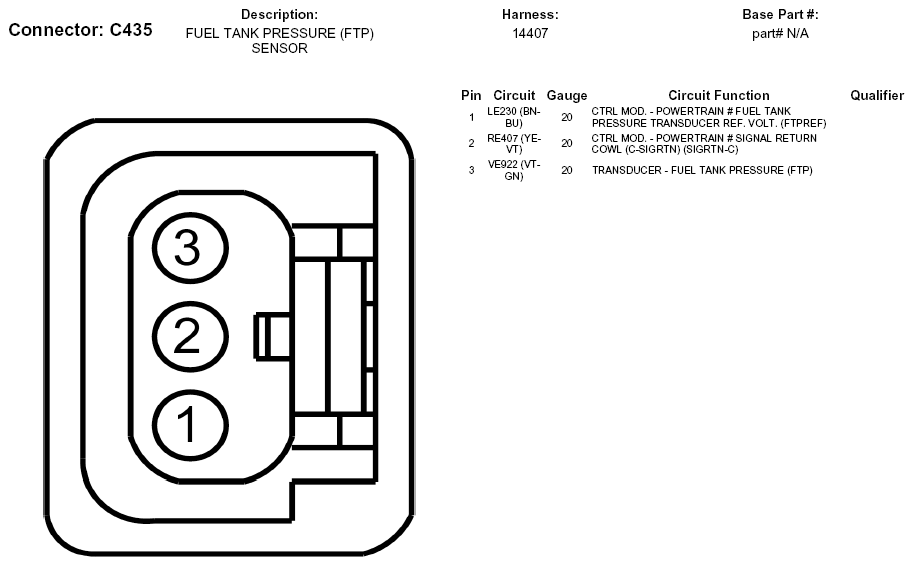

Fig 1: Fuel Tank Pressure Sensor Connector End View (C435)

G05747002

Courtesy of FORD MOTOR CO.
