Electronic Throttle Control Connector (C1368)

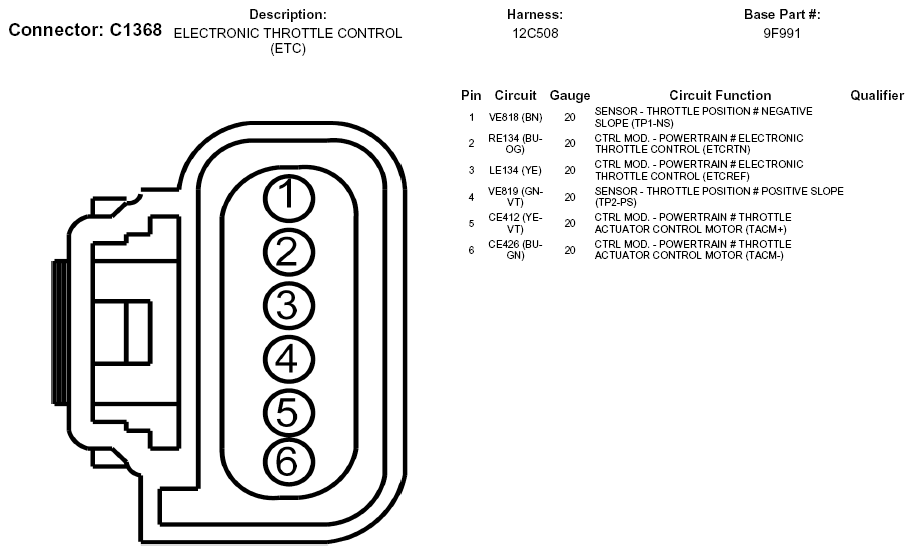

Fig 1: Electronic Throttle Control Connector End View (C1368)

G05747089

Courtesy of FORD MOTOR CO.
