Driver Side Front Power Window Motor Connector (C540)

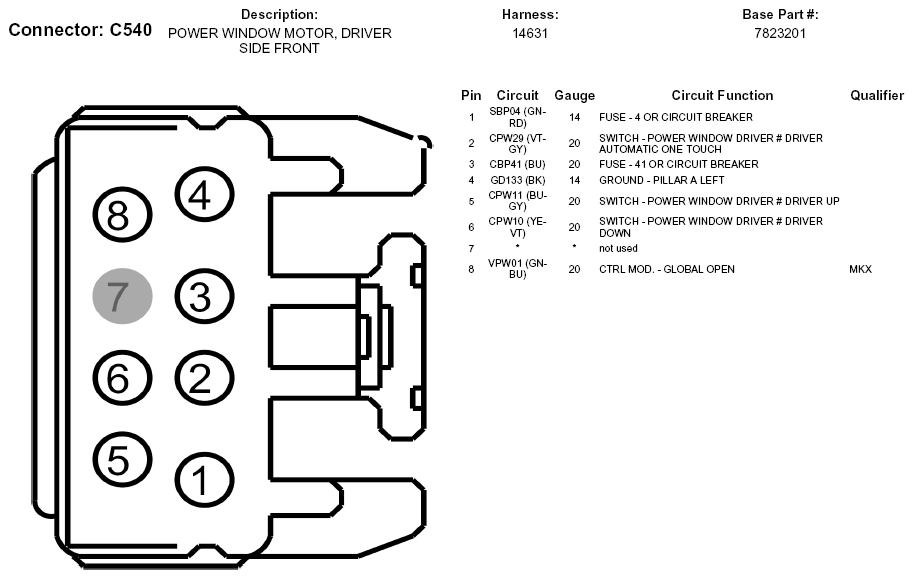

Fig 1: Driver Side Front Power Window Motor Connector End View (C540)

G05747027

Courtesy of FORD MOTOR CO.
