Driver Side Door Lock Switch Connector (C505)

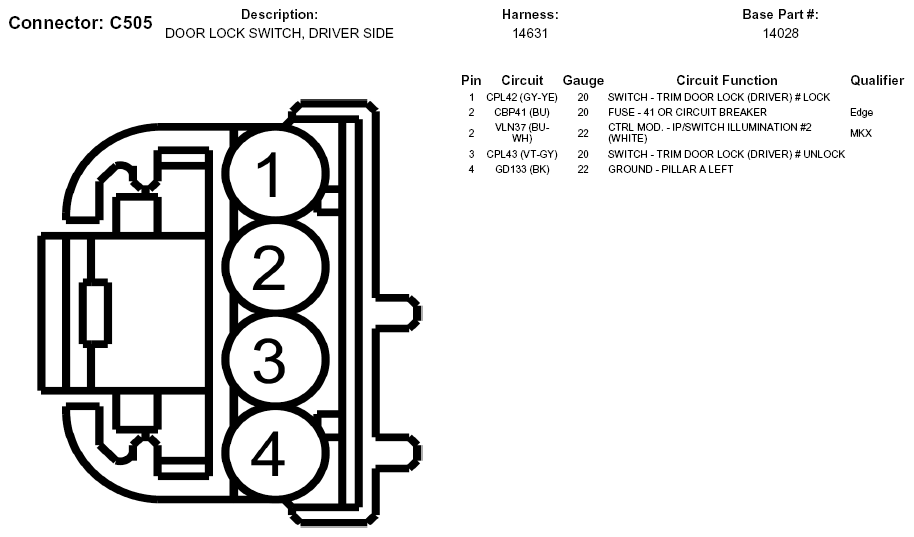

Fig 1: Driver Side Door Lock Switch Connector End View (C505)

G05747018

Courtesy of FORD MOTOR CO.
