Driver Side Climate Controlled Seat Cushion Module Connector (C3327)
Driver Side Climate Controlled Seat Cushion Module Connector (C3327)

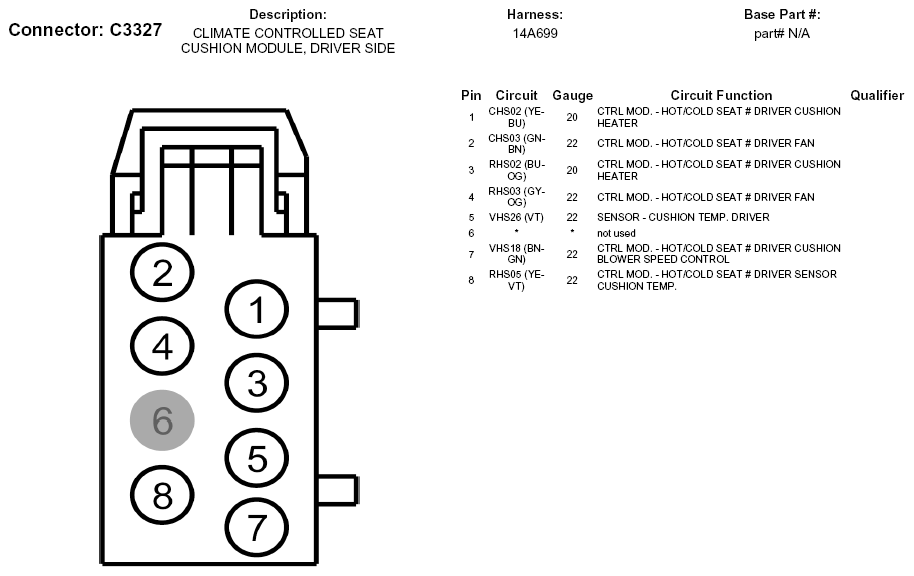

Fig 1: Driver Side Climate Controlled Seat Cushion Module Connector End View (C3327)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
