Console 2 Power Point Connector (C3064)

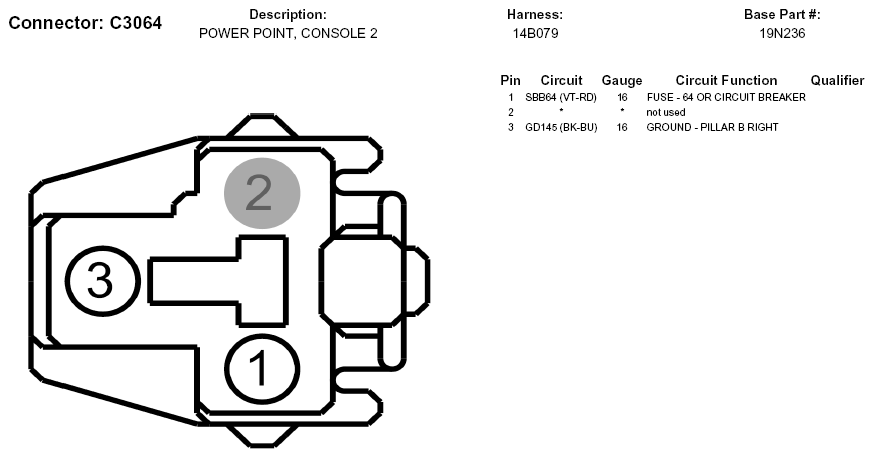

Fig 1: Console 2 Power Point Connector End View (C3064)

G05747137

Courtesy of FORD MOTOR CO.
