Console 1 Power Point Connector (C3063)

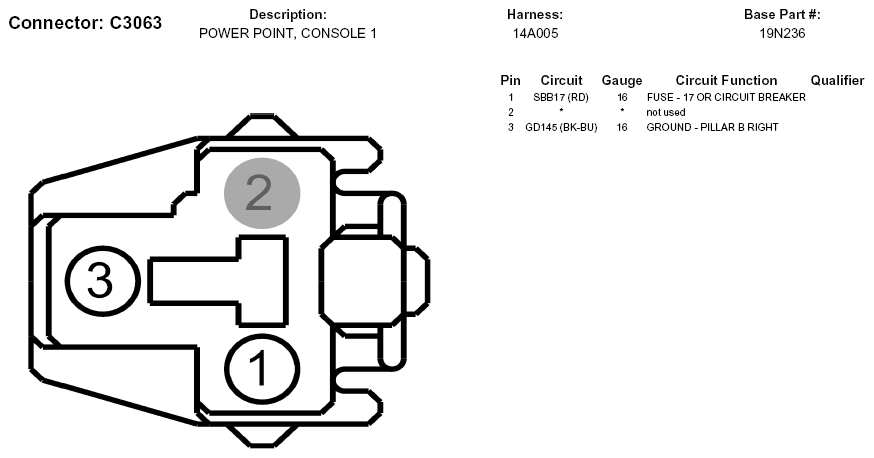

Fig 1: Console 1 Power Point Connector End View (C3063)

G05747136

Courtesy of FORD MOTOR CO.
