Blower Motor Speed Control Connector (C271)

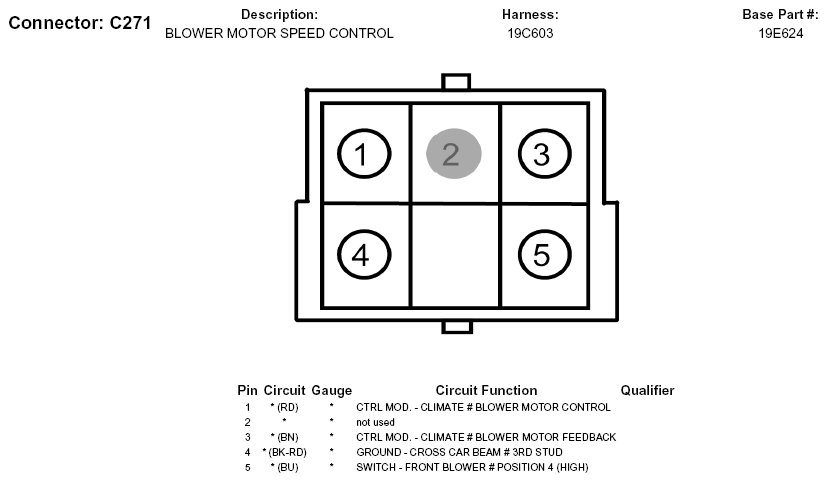

Fig 1: Blower Motor Speed Control Connector End View (C271)

G05746960

Courtesy of FORD MOTOR CO.
