Ambient Lighting Switch Connector (C3348)

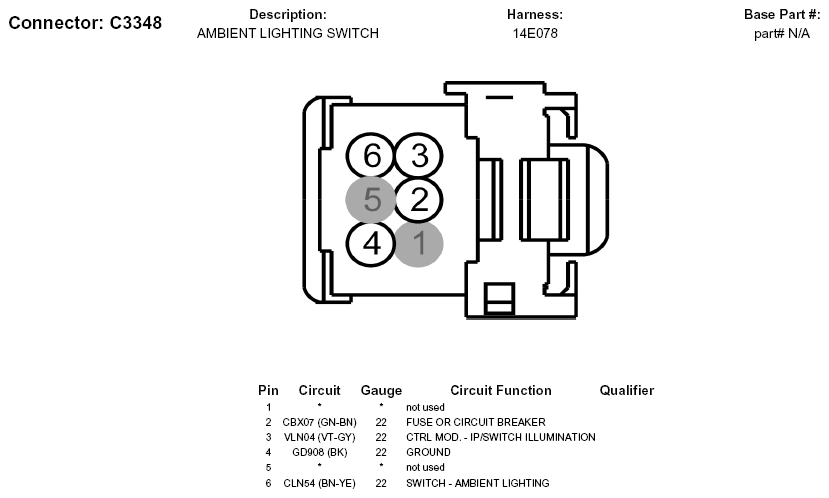

Fig 1: Ambient Lighting Switch Connector End View (C3348)

G05747179

Courtesy of FORD MOTOR CO.
