Active Torque Control Coupling Solenoid Connector (C4347)
Active Torque Control Coupling Solenoid Connector (C4347)

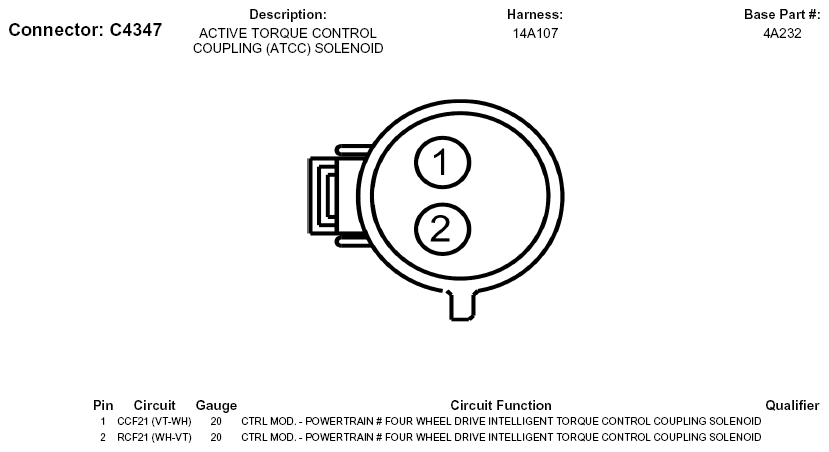

Fig 1: Active Torque Control Coupling Solenoid Connector End View (C4347)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
