Fender - Front: Notes
WARNING: This page is about a different car, the 2009 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

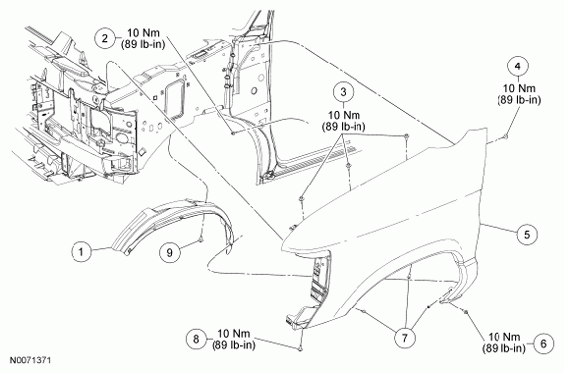

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 16103 | Front fender splash shield |
| 2 | N606676 | Front fender inner screw |
| 3 | N606676 | Front fender upper screws |
| 4 | N606676 | Front fender rear upper screw |
| 5 | 16005 | Front fender |
| 6 | N606676 | Front fender rear lower screw |
| 7 | 56912-S | Front fender splash shield wheel lip screws |
| 8 | N606676 | Front fender-to-front fender mounting bracket screw |
| 9 | 388577-S | Front fender splash shield-to-front structure pushpin |
