Removal And Installation: Door: Notes
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

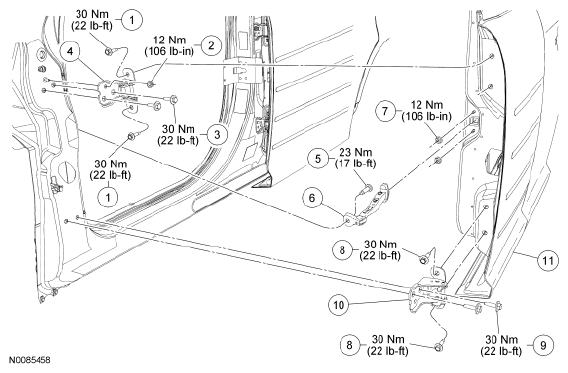

Front door shown, rear door similar.
INSTRUMENT CLUSTER (IC) DTC CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W709361 | Front door upper hinge-to-door bolts (2 required) |
| 2 | W709415 | Front door upper hinge-to-body nut |
| 3 | W709361 | Front door upper hinge-to-body bolt (2 required) |
| 4 | 22800 | Front door upper hinge |
| 5 | W709361 | Front door check arm bolt |
| 6 | 23552 | Front door check arm |
| 7 | W712741 | Front door check arm nut (2 required) |
| 8 | W709361 | Front door lower hinge-to-door bolts (2 required) |
| 9 | W709361 | Front door lower hinge-to-body bolt (2 required) |
| 10 | 22810 | Front door lower hinge |
| 11 | 20124 | Front door assembly |
