Steering Column Multifunction Switch: Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

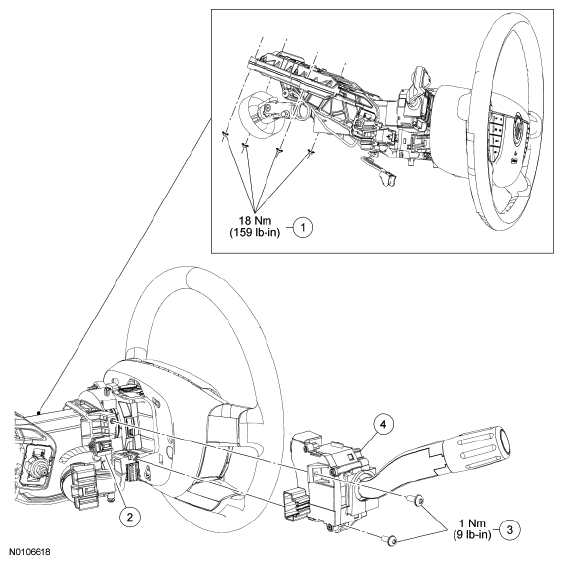

Fig 1: Steering Column Multifunction Switch Replacement Components With Torque Specifications
G06064037Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 N806432 Steering column nuts (4 required)
2 - Multifunction switch electrical connector (part of 14401)
3 W504694 Multifunction switch screws (2 required)
4 13K359 Multifunction switch
