Audio Control Switch / Climate Control Switch Connector - C2208
Audio Control Switch / Climate Control Switch Connector - C2208

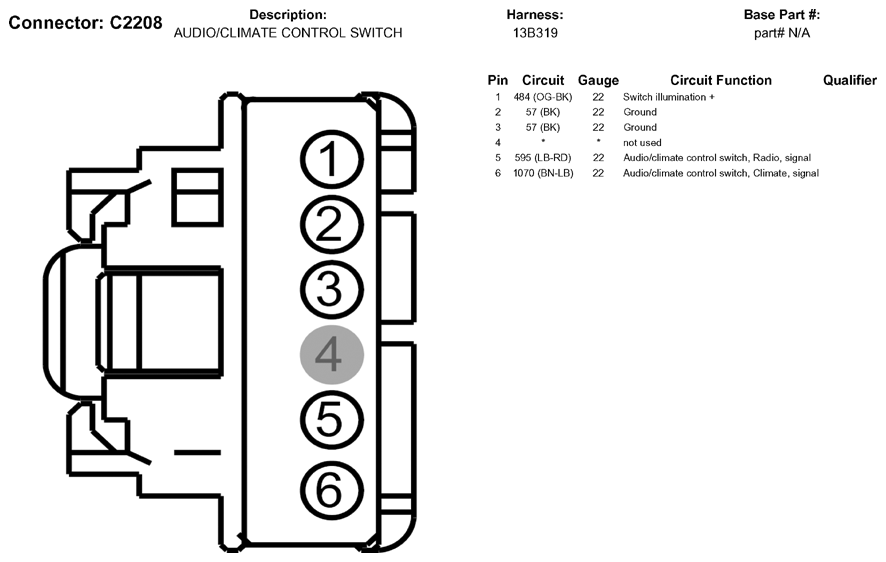

Fig 1: Audio Control Switch / Climate Control Switch Connector End View - (C2208)
Courtesy of FORD MOTOR CO.
