Removal And Installation: Clock: Notes

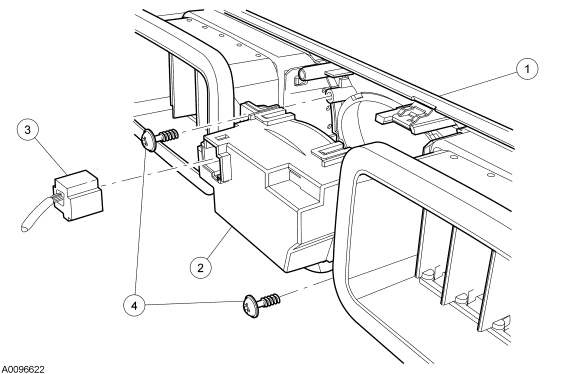

Fig 1: Clock Components
GF0018162Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5404268 Clock finish panel
2 15000 Clock
3 - Clock electrical connector (part of 14401)
4 - Clock screws (2 required)
