Universal Heated Oxygen Sensor 11 Connector

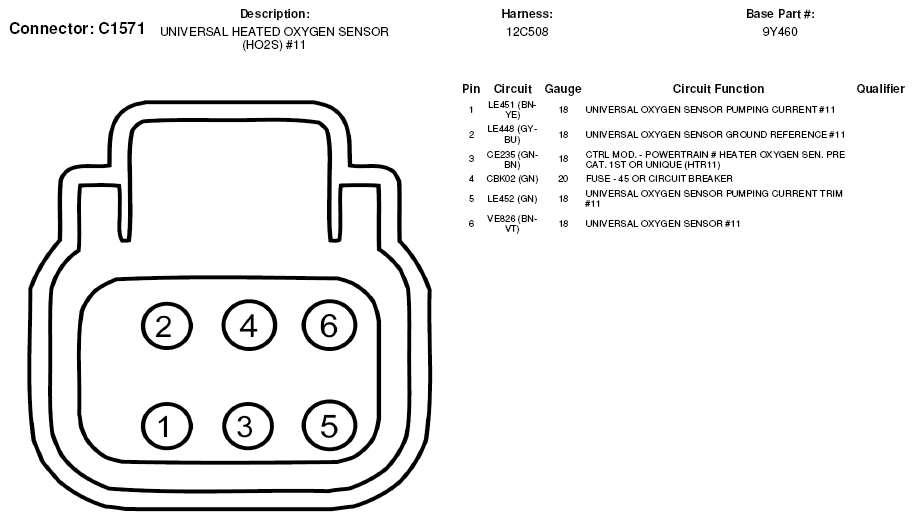

Fig 1: Universal Heated Oxygen Sensor 11 Connector End View (C1571)

G05603450
