Heated Oxygen Sensor 22 Connector

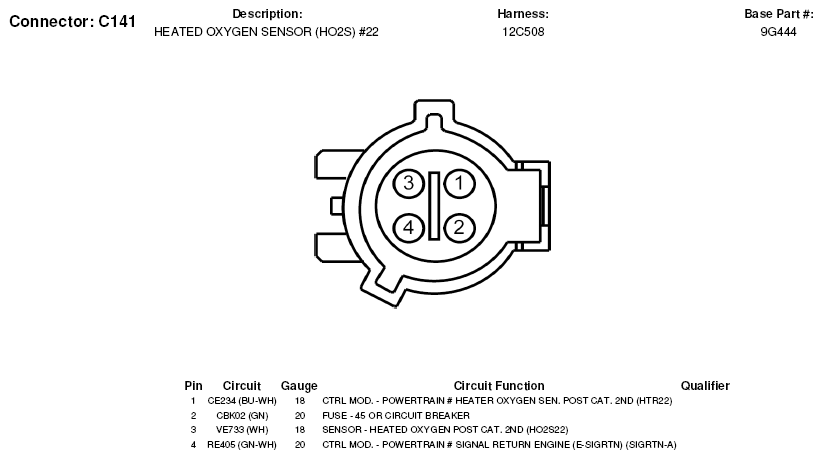

Fig 1: Heated Oxygen Sensor 22 Connector End View (C141)

G05603257
