Driver Seat Recliner Motor Connector

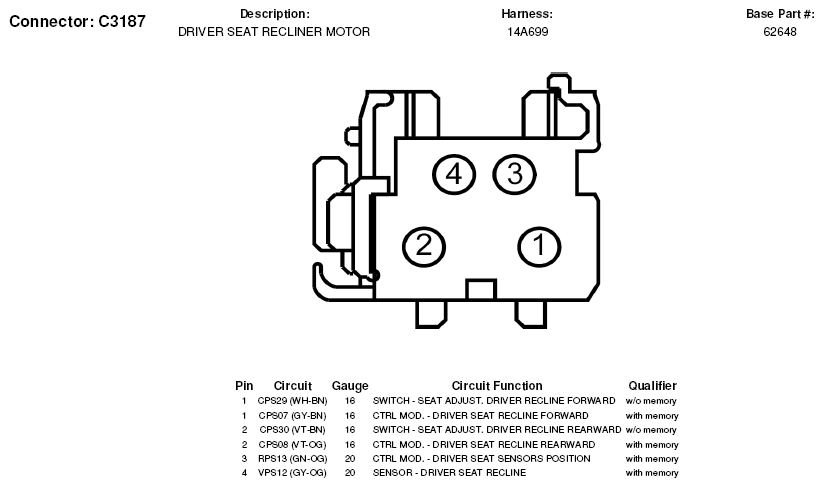

Fig 1: Driver Seat Recliner Motor Connector End View (C3187)

G05603504
