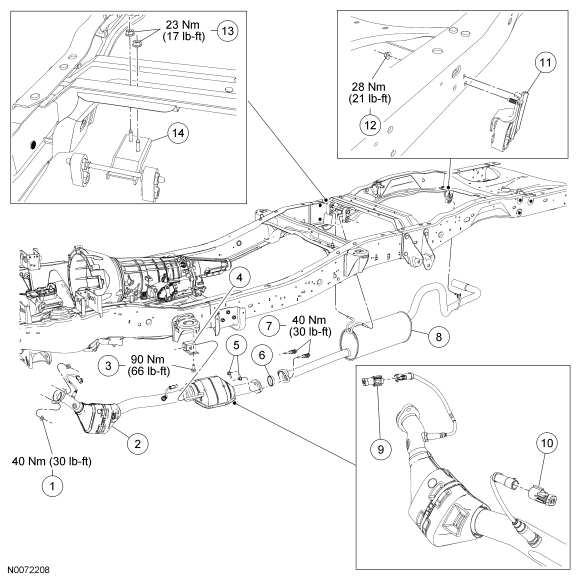

Exhaust System - Exploded View
NOTE:
Exhaust system will vary by wheelbase.
NOTE:
Vehicle body removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705443 | Exhaust downpipe-to-exhaust manifold nuts (2 required) |
| 2 | 5E212 | Exhaust downpipe |
| 3 | 390066 | Transmission mount and isolator-to-transmission bolt |
| 4 | 5E269 | Exhaust isolator |
| 5 | N802641 | Exhaust downpipe-to-muffler and tailpipe assembly flag nuts |
| 6 | 5E241 | Exhaust downpipe-to-muffler and tailpipe assembly gasket |
| 7 | 5G215 | Exhaust downpipe-to-muffler and tailpipe assembly bolts |
| 8 | 5230 | Muffler and tailpipe assembly |
| 9 | - | Heated oxygen sensor (HO2S) electrical connector (part of 12A581) |
| 10 | - | Catalyst monitor sensor electrical connector (part of 12A581) |
| 11 | 5260 | Tailpipe bracket and isolator assembly |
| 12 | W520413 | Tailpipe bracket and isolator assembly nut |
| 13 | W520413 | Muffler bracket and isolators assembly nuts |
| 14 | 5A246 | Muffler bracket and isolators assembly |

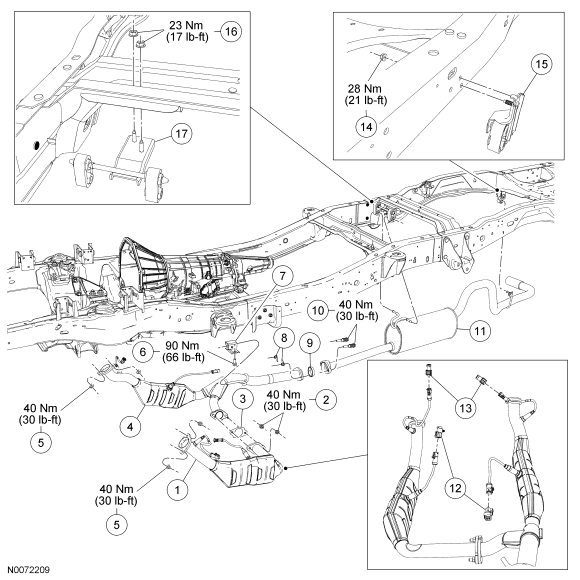

NOTE:
3.0L shown in illustration, 4.0L similar.
NOTE:
Exhaust system will vary by wheelbase.
NOTE:
Vehicle body removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5E212 | LH side of exhaust Y-pipe |
| 2 | W705443 | LH side of exhaust Y-pipe-to-RH side of exhaust Y-pipe nuts |
| 3 | 5B266 | LH side of exhaust Y-pipe-to-RH side of exhaust Y-pipe gasket |
| 4 | 5E212 | RH side of exhaust Y-pipe |
| 5 | W705443 | Exhaust Y-pipe assembly-to-exhaust manifold nuts (4 required) |
| 6 | 390066 | Transmission mount and isolator-to-transmission bolt |
| 7 | 5E269 | Exhaust isolator |
| 8 | N802641 | RH side of exhaust Y-pipe-to-muffler and tailpipe assembly flagnuts |
| 9 | 5E241 | RH side of exhaust Y-pipe-to-muffler and tailpipe assembly gasket |
| 10 | 5G215 | RH side of exhaust Y-pipe-to-muffler and tailpipe assembly bolts |
| 11 | 5230 | Muffler and tailpipe assembly |
| 12 | - | Catalyst monitor sensor electrical connectors (part of 12A581) |
| 13 | - | Heated oxygen sensors (HO2S) electrical connectors (part of 12A581) |
| 14 | W520413 | Tailpipe bracket and isolator assembly nut |
| 15 | 5260 | Tailpipe bracket and isolator assembly |
| 16 | W520413 | Muffler bracket and isolators assembly nuts |
| 17 | 5A246 | Muffler bracket and isolators assembly |
- For additional information, refer to the appropriate procedures in this service information.
