Hydraulic Control Unit (HCU): Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A

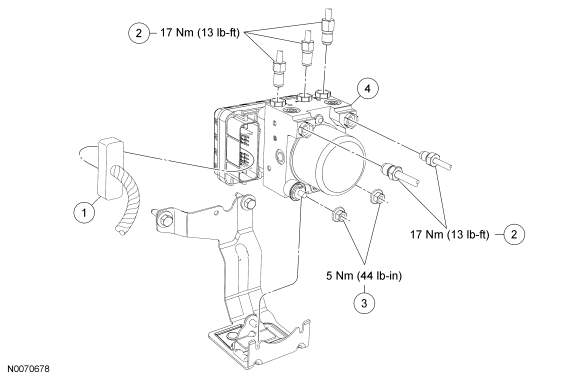

Fig 1: Exploded View Of Hydraulic Control Unit (HCU) Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	ABS module electrical connector (part of 14290)
2	-	Hydraulic control unit (HCU) brake tube fittings (5 required) (part of 2B523)
3	2C348	HCU-to-bracket nuts (2 required)
4	2C215	HCU
