Multifunction Switch, Turn Portion: Schematic

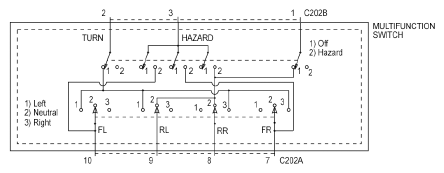

Fig 1: Multifunction Switch, Turn Portion - Schematic

G05605029

Courtesy of FORD MOTOR CO.
