Steering Column: Notes

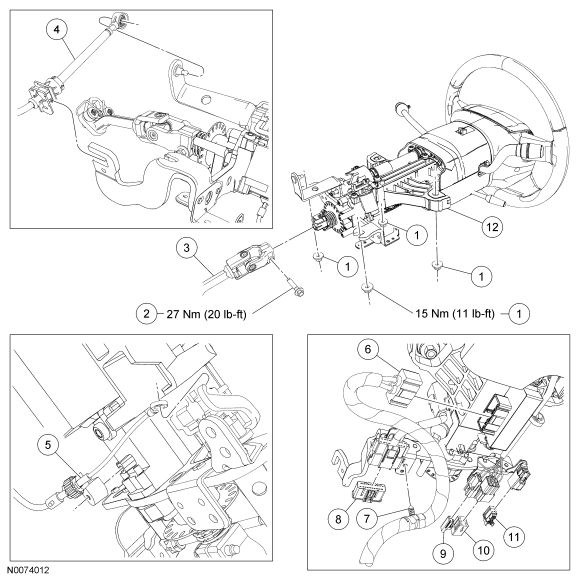

Fig 1: Exploded View Of Steering Column Assembly With Torque Specifications

GF0047393

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N806423	Steering column support bracket nuts (4 required)
2	N808684	Upper steering column shaft-to-steering column bolt
3	3E751	Upper steering column shaft
4	7E395	Shift cable and bracket
5	130101	Shift indicator cable
6	-	Ignition switch electrical connector (part of 14401)
7	-	Wiring harness retainer (part of 14401)
8	-	Multi-function switch electrical connector (part of 14A320)
9	-	Clockspring electrical connector (part of 14401)
10	-	Clockspring electrical connector (part of 14401)
11	-	Brake shift interlock solenoid electrical connector (part of 14401)
12	3C529	Steering column

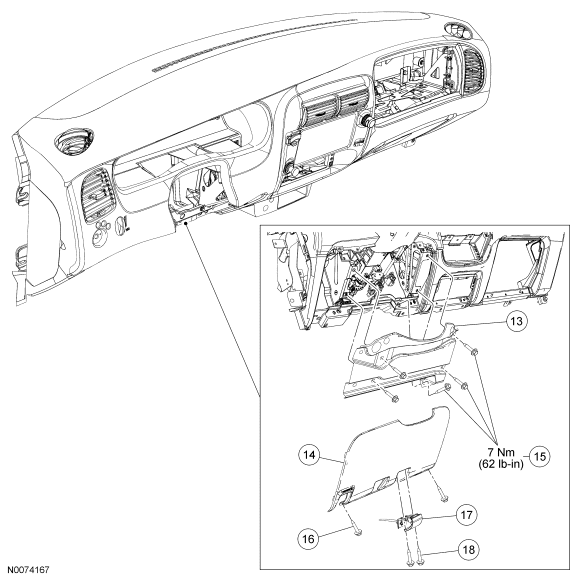

Fig 2: Exploded View Of Steering Column Opening Cover Components With Torque Specifications

GF0047394

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
13	017A28	Steering column opening cover reinforcement
14	04459	Steering column opening cover
15	W705962	Steering column opening cover reinforcement bolts (5 required)
16	W705314	Steering column opening cover screw (2 required)
17	16B975	Hood release handle
18	N804693	Hood release handle bolt (2 required)
