Safety Belt Shoulder Height Adjuster: Notes

NOTE: LH shown, RH similar.

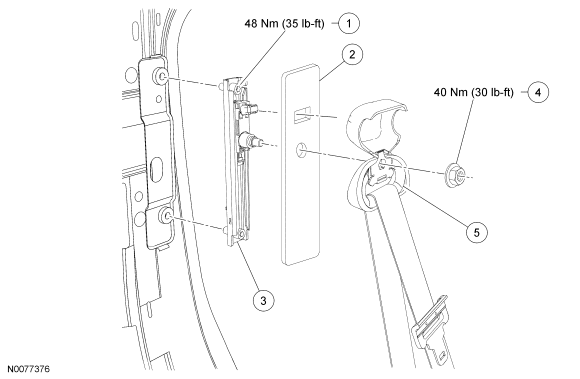

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt shoulder height adjuster bolt (2 required) (part of 602B82)
2	602B90	Safety belt shoulder height adjuster cover
3	602B82	Safety belt shoulder height adjuster
4	W520113	D-ring nut
5	-	D-ring (part of 611B08 RH/ 611B09 LH safety belt retractor)
