Safety Belt Retractor - Third Row, Outboard: Notes

NOTE: Fifteen-passenger vehicle shown, others similar.

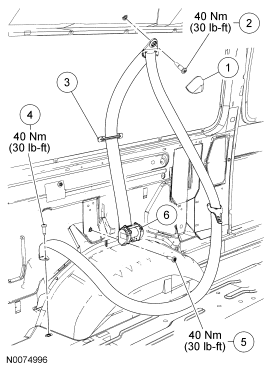

Fig 1: Exploded View Of RH Safety Belt Retractor With Torque Specifications - Third Row Outboard

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	60262	D-ring cover
2	-	D-ring bolt (part of 611B68)
3	-	Safety belt guide (part of 611B68)
4	386273	Safety belt anchor bolt
5	-	Safety belt retractor bolt (part of 611B68)
6	611B68	Safety belt retractor

NOTE: Fifteen-passenger vehicle shown, others similar.

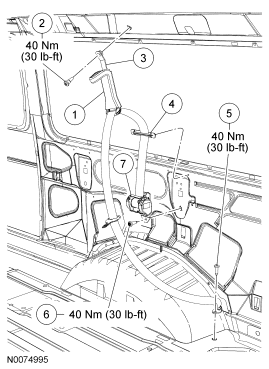

Fig 2: Exploded View Of LH Safety Belt Retractor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt sling sleeve (part of 611B69)
2	-	Safety belt sling bolt (part of 611B69)
3	-	Safety belt sling (part of 611B69)
4	-	Safety belt guide (part of 611B69)
5	386273	Safety belt anchor bolt
6	-	Safety belt retractor bolt (part of 611B69)
7	611B69	Safety belt retractor
