Traction Control Switch Connector - C280

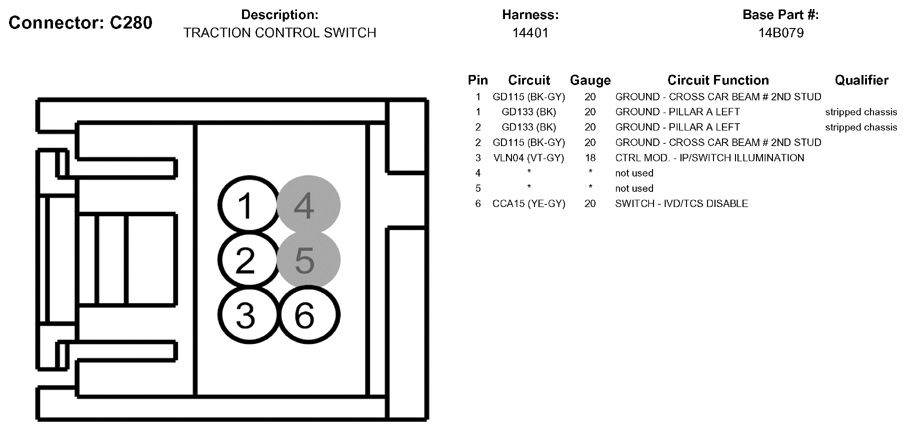

Fig 1: Traction Control Switch Connector End View - (C280)

G05790732

Courtesy of FORD MOTOR CO.
