Fuel Tank Pressure Sensor Connector
Fuel Tank Pressure Sensor Connector

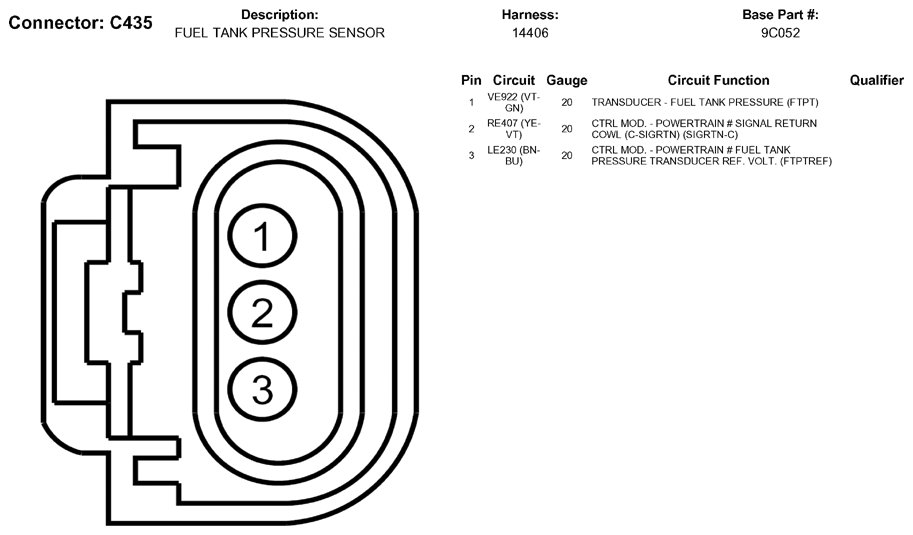

Fig 1: Fuel Tank Pressure Sensor Connector End View - (C435)
Courtesy of FORD MOTOR CO.

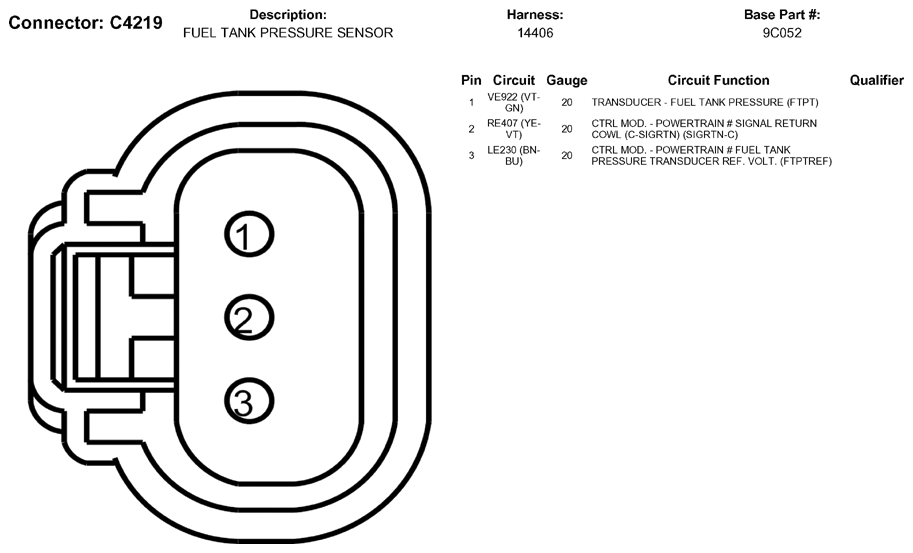

Fig 2: Fuel Tank Pressure Sensor Connector End View - (C4219)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
