EGR System Module Connector - C1450

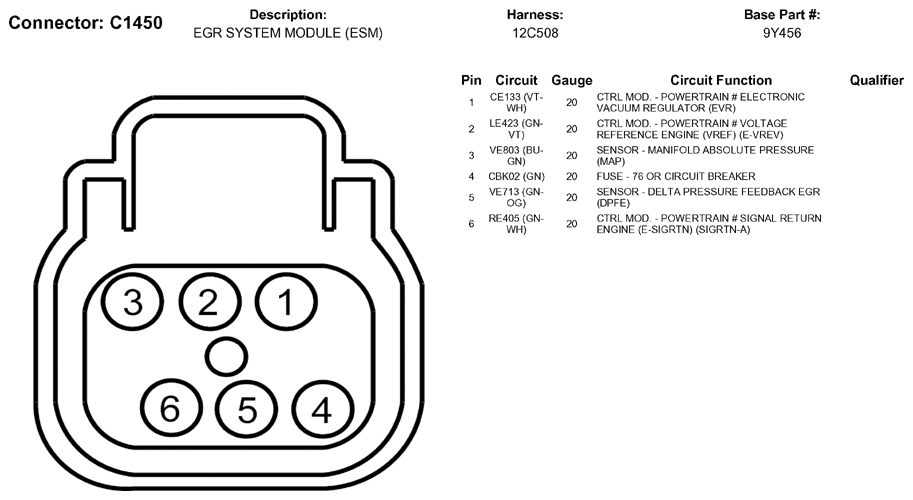

Fig 1: EGR System Module Connector End View - (C1450)

G05790872

Courtesy of FORD MOTOR CO.
