Circuit Protection Devices
WARNING: This page is about a different car, the 2006 Ford Econoline and 2006 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

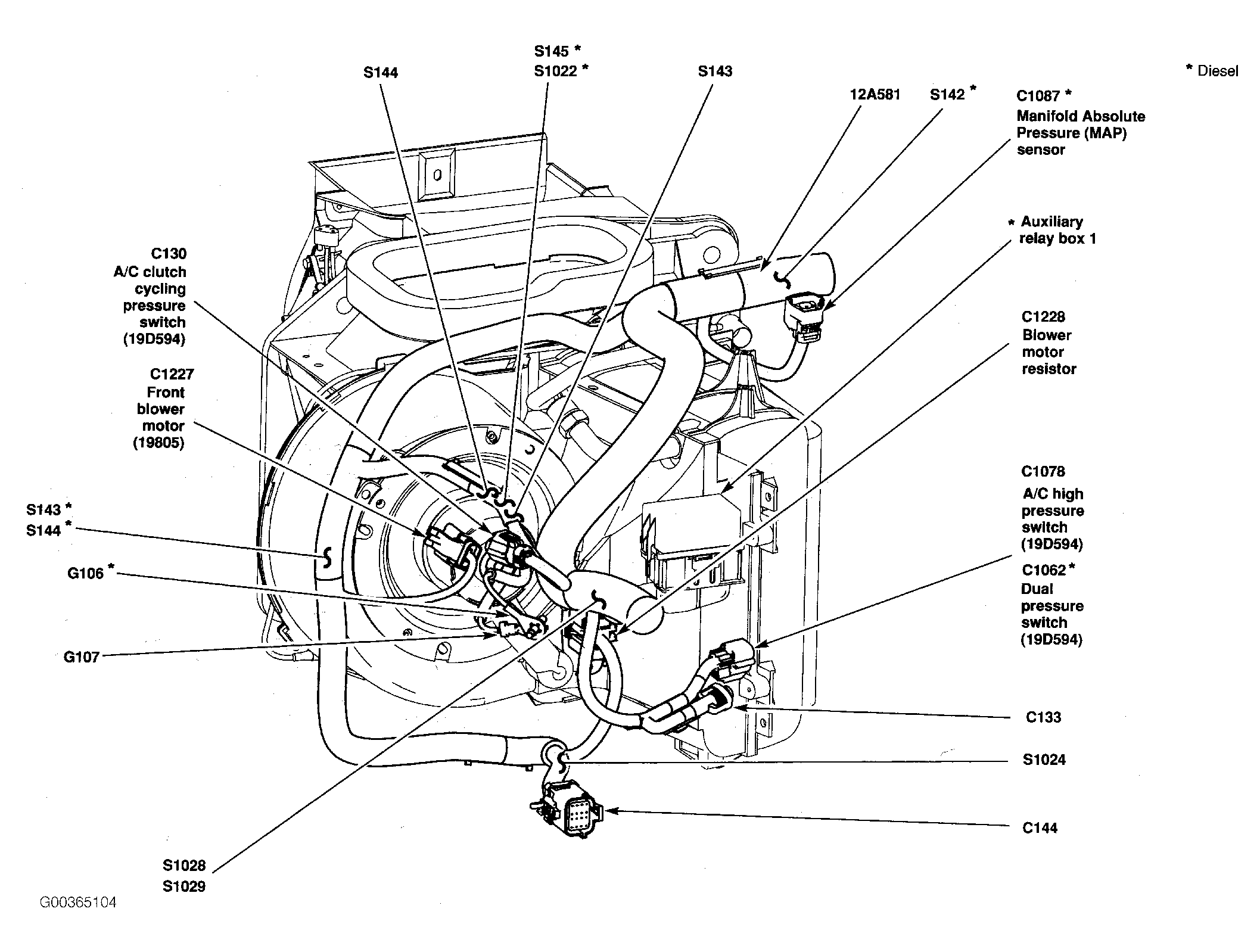

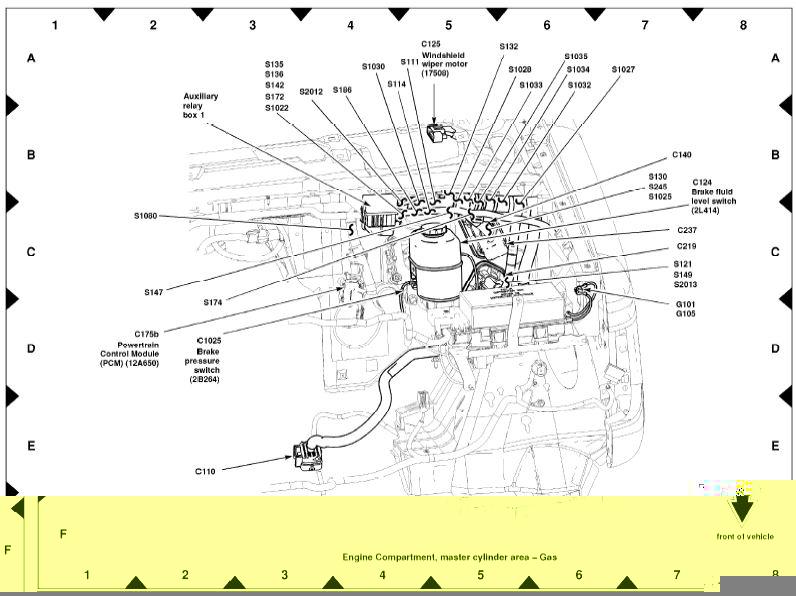

| Auxiliary Relay Box 1 (Diesel) | At right rear of engine compartment. See Figure. |
| Auxiliary Relay Box 1 (Except Diesel & Stripped Chassis) | Engine Compartment, Master Cylinder Area. See Figure. |
| Auxiliary Relay Box 1 (Stripped Chassis) | At left rear of engine compartment. See Figure. |

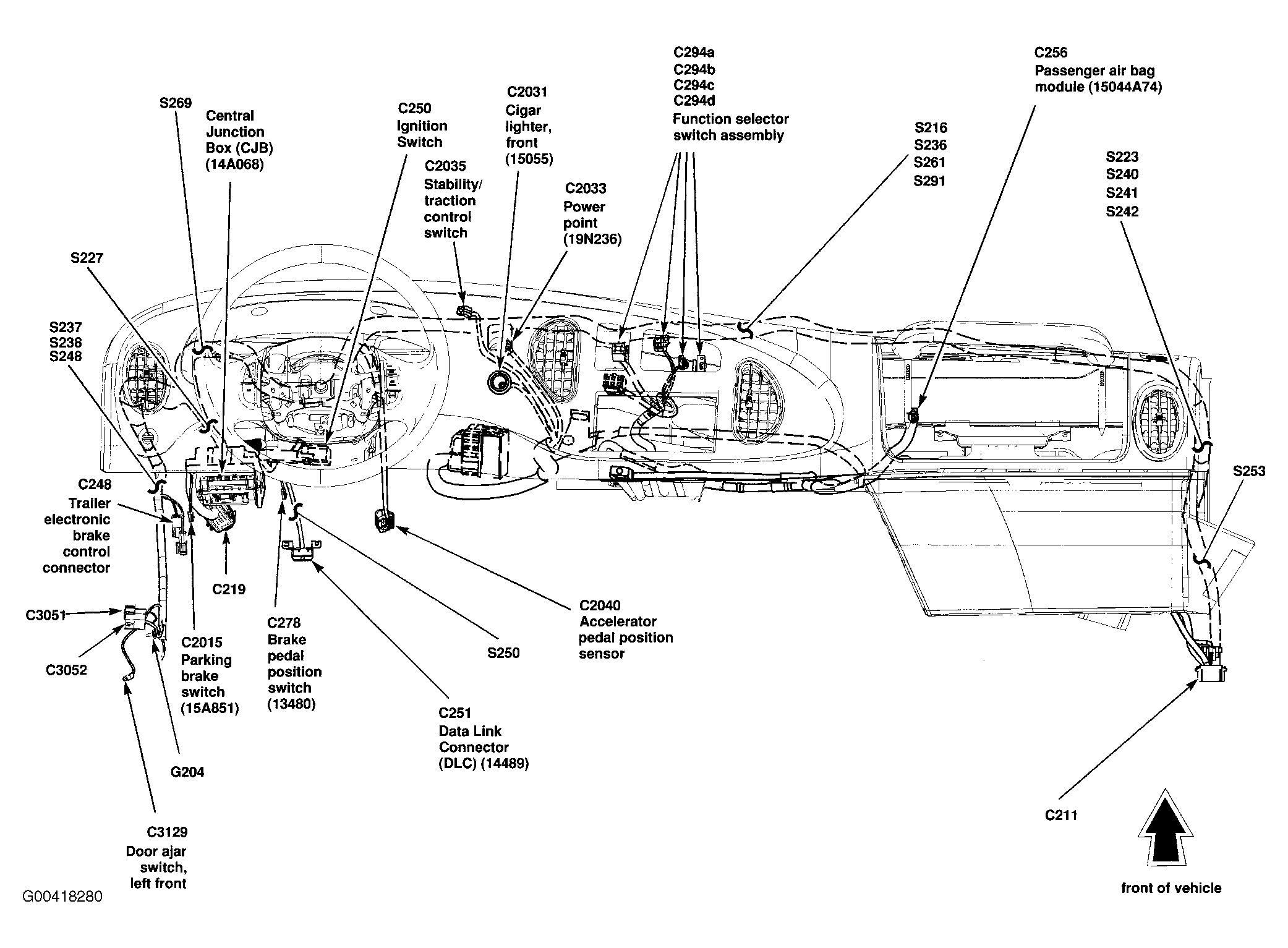

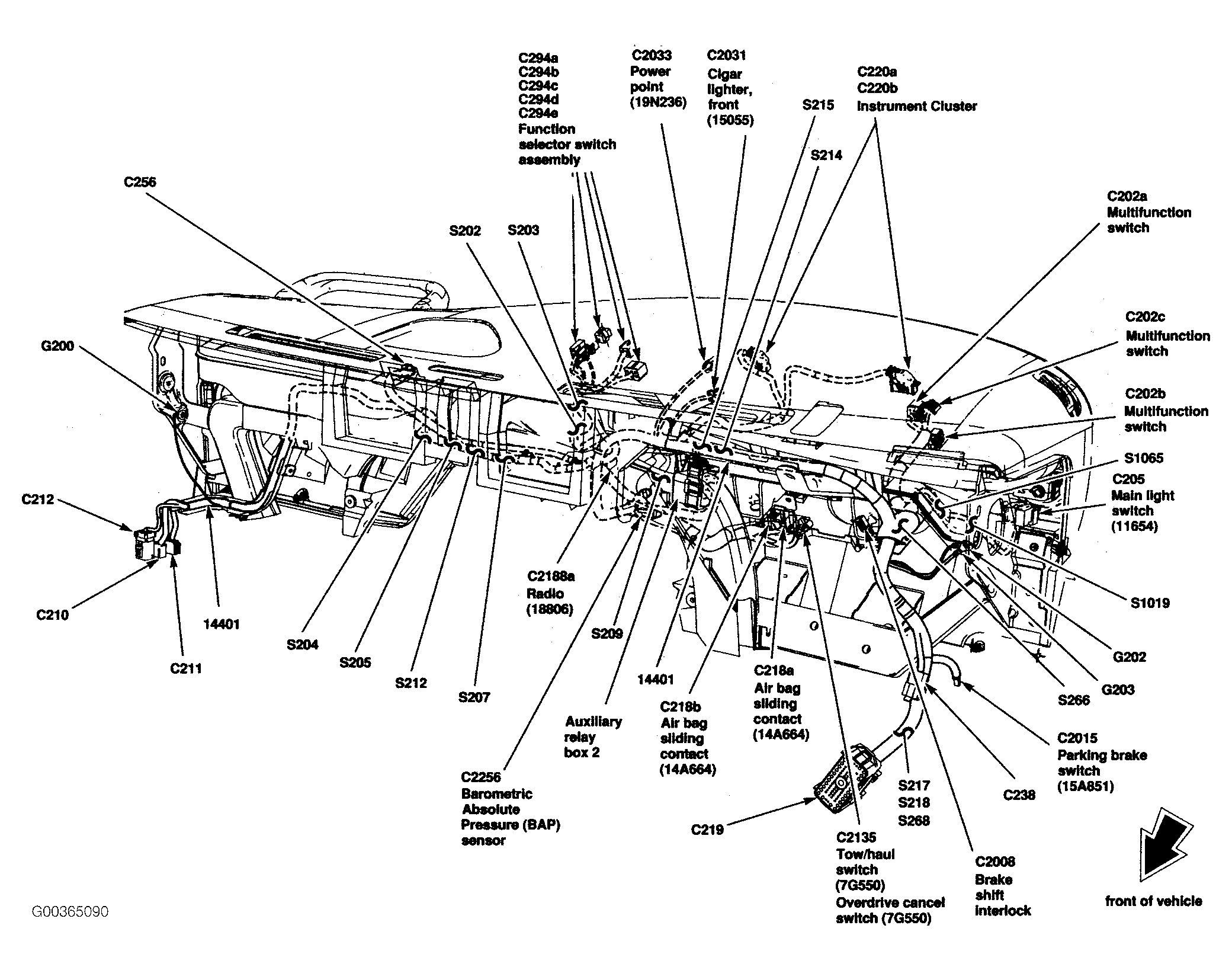

| Auxiliary Relay Box 2 | Behind center of dash. See Figure. |
| Battery Junction Box (BJB) (Diesel) | At right front of engine compartment. See Figure. |

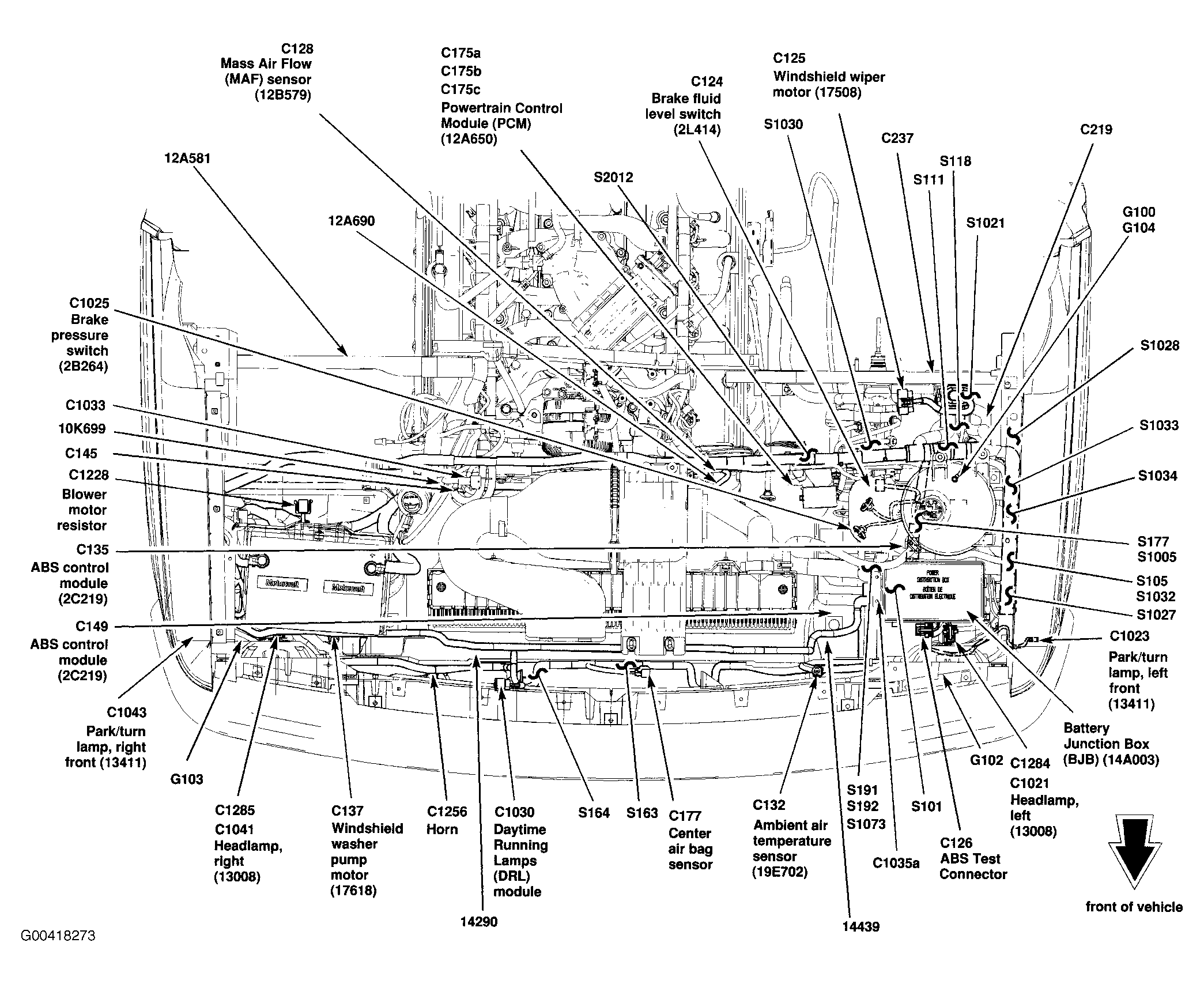

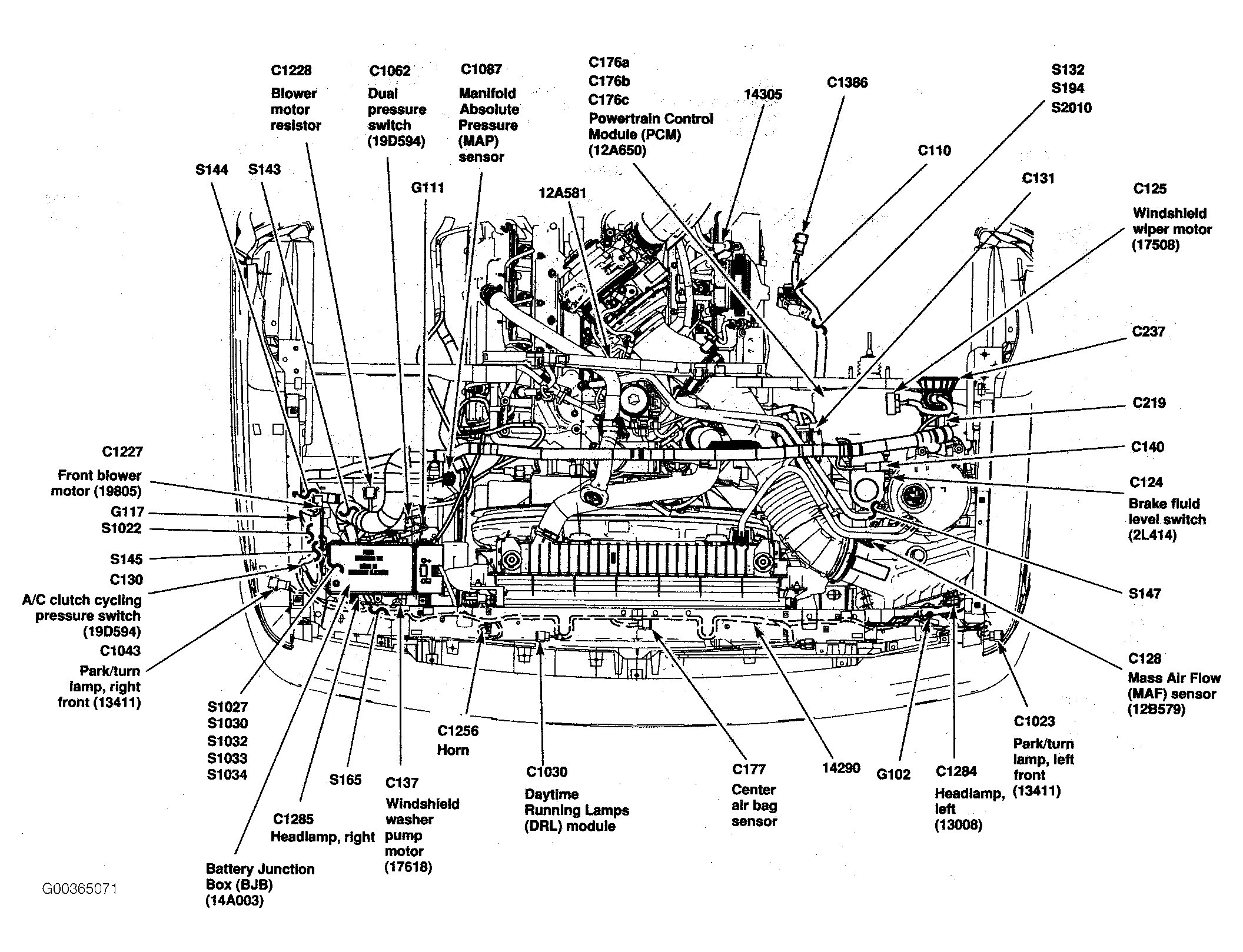

| Battery Junction Box (BJB) (Except Diesel & Stripped Chassis) | At left side of engine compartment. See Figure. |

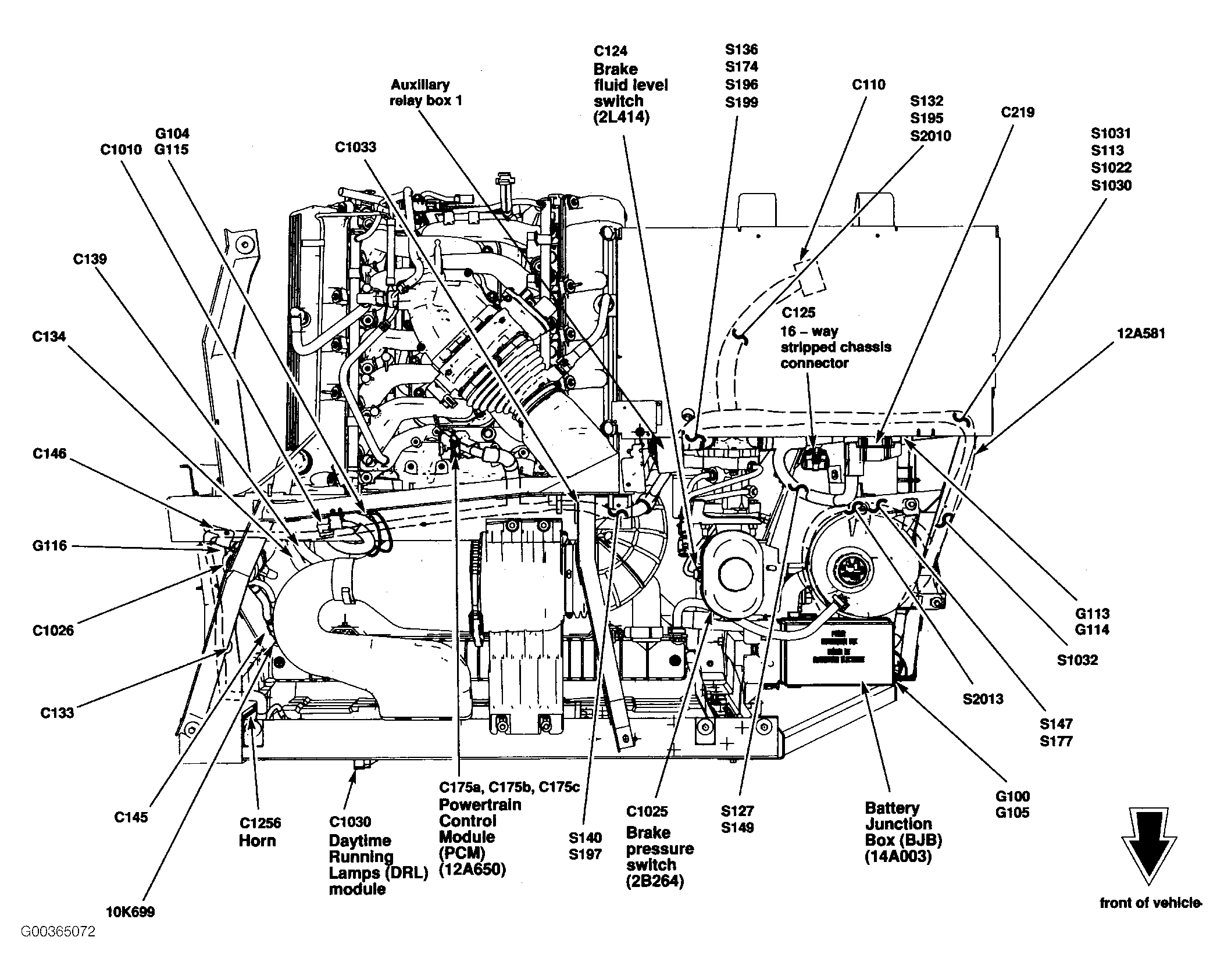

| Battery Junction Box (BJB) (Stripped Chassis) | At left side of engine compartment. See Figure. |

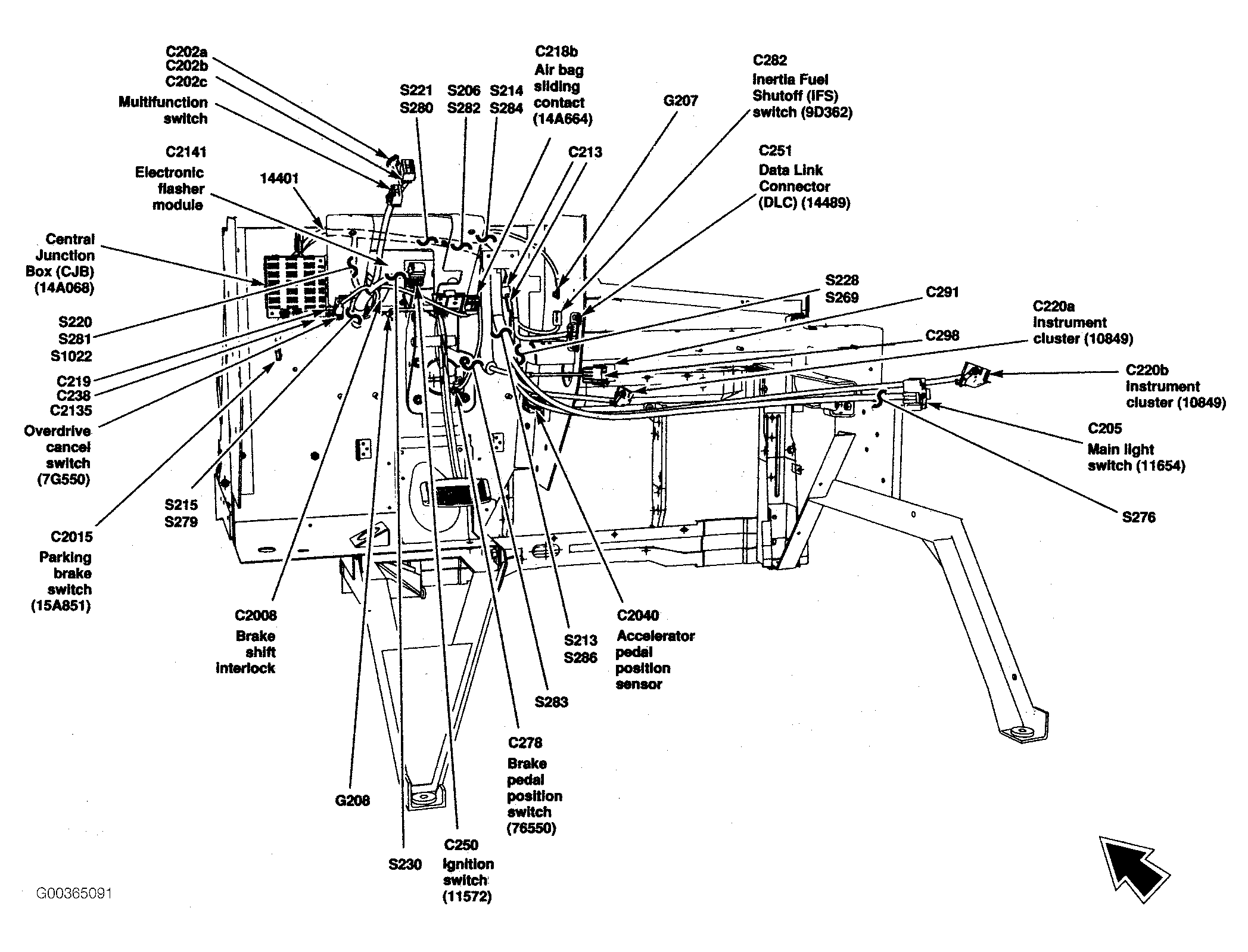

| Central Junction Box (CJB) (Except Stripped Chassis) | Behind left side of dash. See Figure. |
| Central Junction Box (CJB) (Stripped Chassis) | Behind left side of dash. See Figure. |
